| Manufacturer Part Number: | NCP5608MTR2G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 8 Output DC DC Regulator Switched Capacitor (Charge Pump) I²C Dimming 25mA, 100mA 24-TQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCP5608MTR2G Datasheet |
| Internal Part Number | 898-NCP5608MTR2G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 19/Dec/2008 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | DC DC Regulator | |
| Topology | Switched Capacitor (Charge Pump) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 8 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 4.8 V ~ 5.5 V | |
| Current - Output / Channel | 25mA, 100mA | |
| Frequency | 1.3MHz | |
| Dimming | I²C | |
| Applications | Backlight, Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

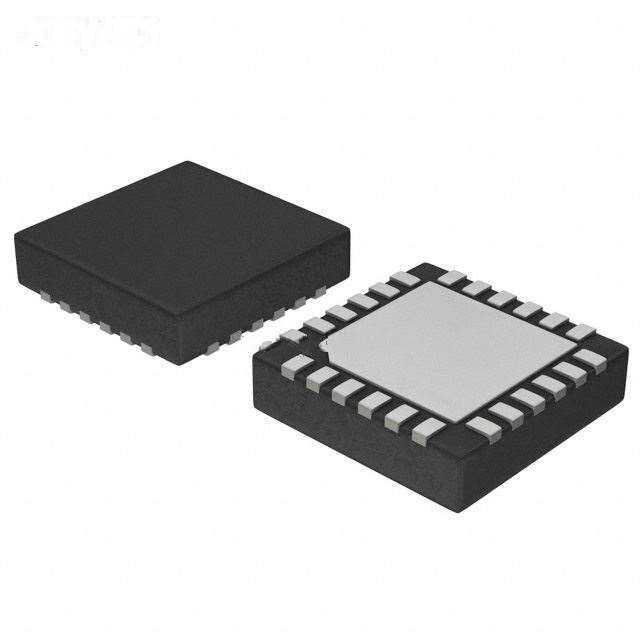

| Package / Case | 24-TFQFN Exposed Pad | |
| Supplier Device Package | 24-TQFN | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCP5608MTR2G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCP5608MTR2G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP5608MTR2G is new and unused, you can buy NCP5608MTR2G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP5608MTR2G.
