| Manufacturer Part Number: | NCP6324CMTAATBG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 8-WFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCP6324CMTAATBG Datasheet |
| Internal Part Number | 898-NCP6324CMTAATBG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Covering Tape/Material Chg 20/May/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 0.6V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 2A | |
| Frequency - Switching | 3MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

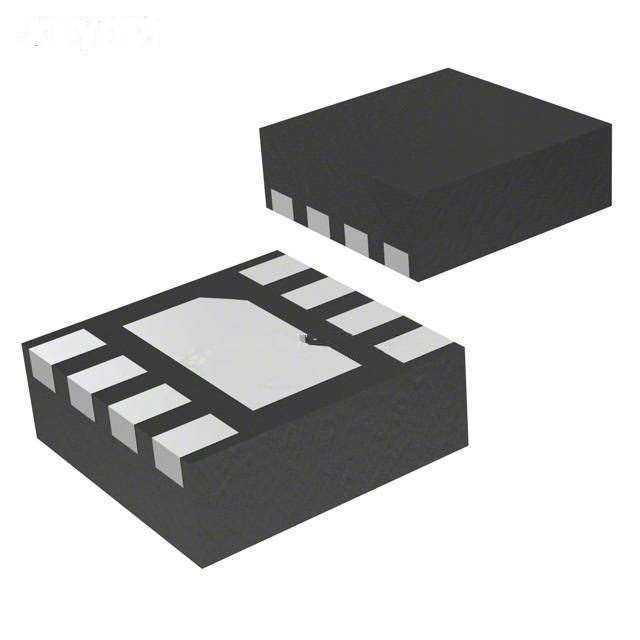

| Package / Case | 8-WFDFN Exposed Pad | |
| Supplier Device Package | 8-WDFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCP6324CMTAATBG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCP6324CMTAATBG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP6324CMTAATBG is new and unused, you can buy NCP6324CMTAATBG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP6324CMTAATBG.
