| Manufacturer Part Number: | NCV8402STT1G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DVR LOW SIDE SOT-223-4 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCV8402STT1G Datasheet |
| Internal Part Number | 898-NCV8402STT1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | ON Semiconductor | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Digi-Reel® | |
| Part Status | Obsolete | |
| Switch Type | General Purpose | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | Low Side | |
| Output Type | N-Channel | |
| Interface | On/Off | |
| Voltage - Load | 42V (Max) | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 2A | |
| Rds On (Typ) | 165 mOhm | |
| Input Type | Non-Inverting | |
| Features | Auto Restart | |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |

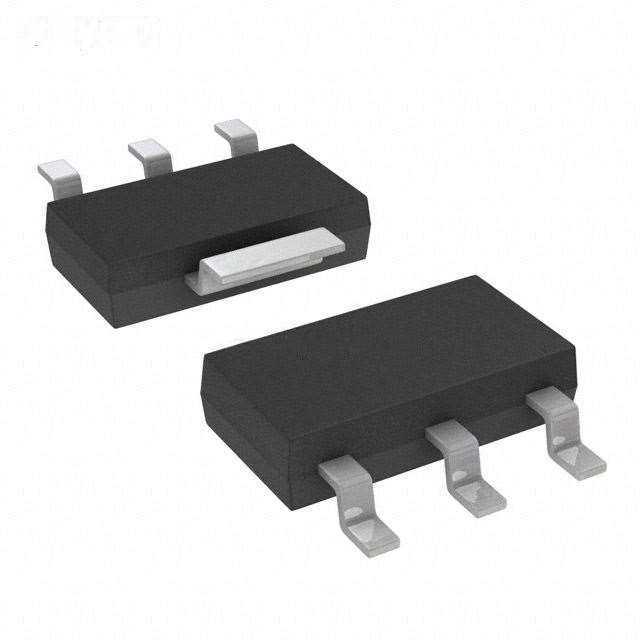

| Package / Case | TO-261-4, TO-261AA | |
| Supplier Device Package | SOT-223 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCV8402STT1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCV8402STT1G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCV8402STT1G is new and unused, you can buy NCV8402STT1G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCV8402STT1G.
