| Manufacturer Part Number: | NGTB30N120FL2WG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

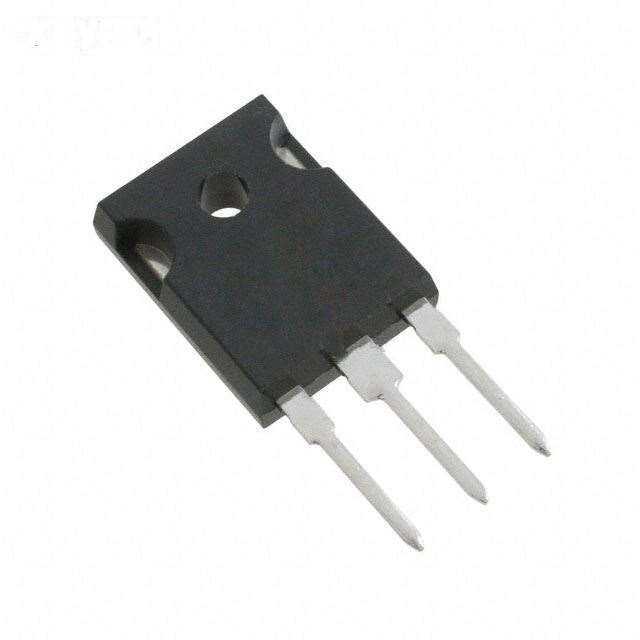

| Description: | IGBT Trench Field Stop 1200V 60A 452W Through Hole TO-247 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NGTB30N120FL2WG Datasheet |
| Internal Part Number | 898-NGTB30N120FL2WG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | On Semi - FL2 Series Field Stop 2 IGBTs | |
| PCN Design/Specification | FPCN20461X27/nov/2015 | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 60A | |
| Current - Collector Pulsed (Icm) | 120A | |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 30A | |
| Power - Max | 452W | |
| Switching Energy | 2.6mJ (on), 700µJ (off) | |
| Input Type | Standard | |
| Gate Charge | 220nC | |
| Td (on/off) @ 25°C | 98ns/210ns | |
| Test Condition | 600V, 30A, 10 Ohm, 15V | |
| Reverse Recovery Time (trr) | 240ns | |
| Package / Case | TO-247-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-247 | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NGTB30N120FL2WG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NGTB30N120FL2WG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NGTB30N120FL2WG is new and unused, you can buy NGTB30N120FL2WG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NGTB30N120FL2WG.
