Manufacturer Part Number: | NLAS1053USG |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
Available Quantity: | 13704 Pieces |
Unit Price: | Quote by Email |
Description: | 1 Circuit IC Switch 2:1 16 Ohm US8 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NLAS1053USG Datasheet |
Internal Part Number | 898-NLAS1053USG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Switch | |
Category | Integrated Circuits (ICs) | |
Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Switch Circuit | SPDT | |
Multiplexer/Demultiplexer Circuit | 2:1 | |
Number of Circuits | 1 | |
On-State Resistance (Max) | 16 Ohm | |
Channel-to-Channel Matching (ΔRon) | 2 Ohm | |
Voltage - Supply, Single (V+) | 2 V ~ 5.5 V | |
Voltage - Supply, Dual (V±) | - | |
Switch Time (Ton, Toff) (Max) | 8ns, 8ns | |
-3db Bandwidth | 200MHz | |
Charge Injection | 3pC | |
Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF | |
Current - Leakage (IS(off)) (Max) | 100nA | |
Crosstalk | - | |
Operating Temperature | -55°C ~ 125°C (TA) | |

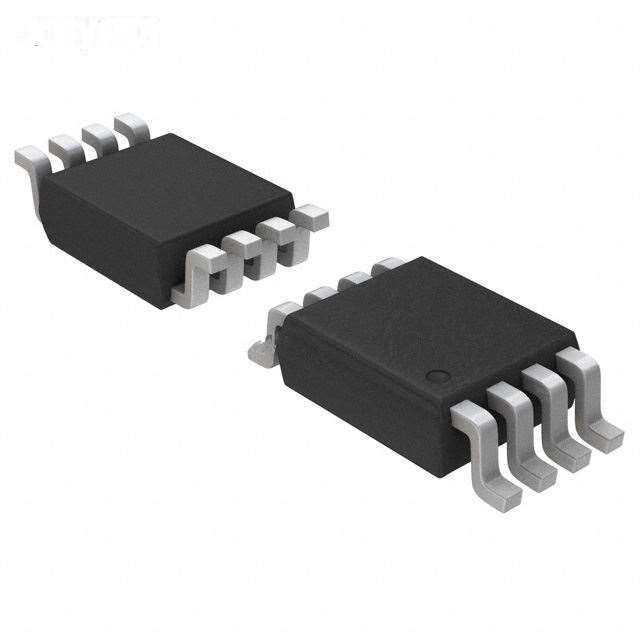

Package / Case | 8-VFSOP (0.091", 2.30mm Width) | |
Supplier Device Package | US8 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NLAS1053USG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NLAS1053USG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLAS1053USG is new and unused, you can buy NLAS1053USG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLAS1053USG.
