Manufacturer Part Number: | NLSV22T244MUTAG |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Logic - Translators, Level Shifters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Voltage Level Translator Unidirectional 2 Circuit 2 Channel 12-UQFN (1.7x2) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NLSV22T244MUTAG Datasheet |
Internal Part Number | 898-NLSV22T244MUTAG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Translators, Level Shifters | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Translator Type | Voltage Level | |
Channel Type | Unidirectional | |
Number of Circuits | 2 | |
Channels per Circuit | 2 | |
Voltage - VCCA | 1.6 V ~ 3.6 V | |
Voltage - VCCB | 1.6 V ~ 3.6 V | |
Input Signal | - | |
Output Signal | - | |
Output Type | Tri-State, Non-Inverted | |
Data Rate | - | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Features | Over Voltage Protection, Power-Off Protection | |
Mounting Type | Surface Mount | |
Package / Case | 12-UFQFN | |

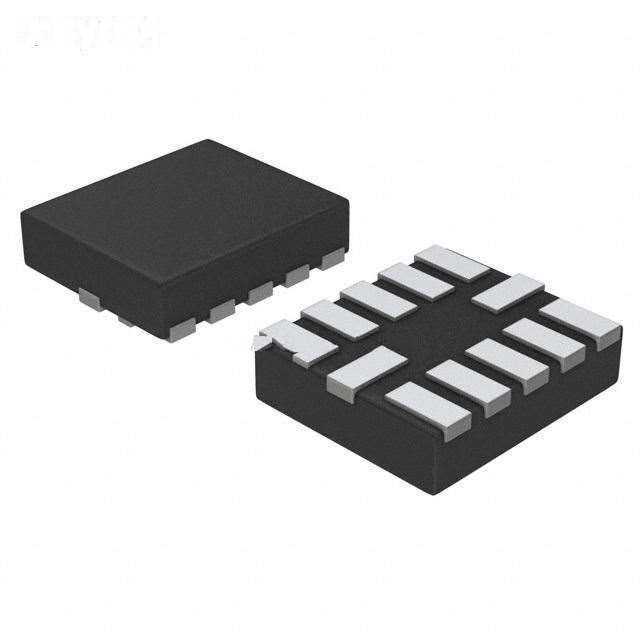

Supplier Device Package | 12-UQFN (1.7x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NLSV22T244MUTAG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NLSV22T244MUTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLSV22T244MUTAG is new and unused, you can buy NLSV22T244MUTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLSV22T244MUTAG.
