Manufacturer Part Number: | NP84N075MUE-S18-AY |
---|---|
Manufacturer: | Renesas Electronics America |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 75V 84A TO-220 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NP84N075MUE-S18-AY Datasheet |
Internal Part Number | 898-NP84N075MUE-S18-AY | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 28/Aug/2013 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Renesas Electronics America | |
Series | - | |
Packaging | Tube | |
Part Status | Obsolete | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 75V | |
Current - Continuous Drain (Id) @ 25°C | 84A (Tc) | |
Rds On (Max) @ Id, Vgs | 12.5 mOhm @ 42A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 250µA | |
Gate Charge (Qg) @ Vgs | 150nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 8400pF @ 25V | |
Power - Max | 1.8W | |
Operating Temperature | 175°C (TJ) | |
Mounting Type | Through Hole | |

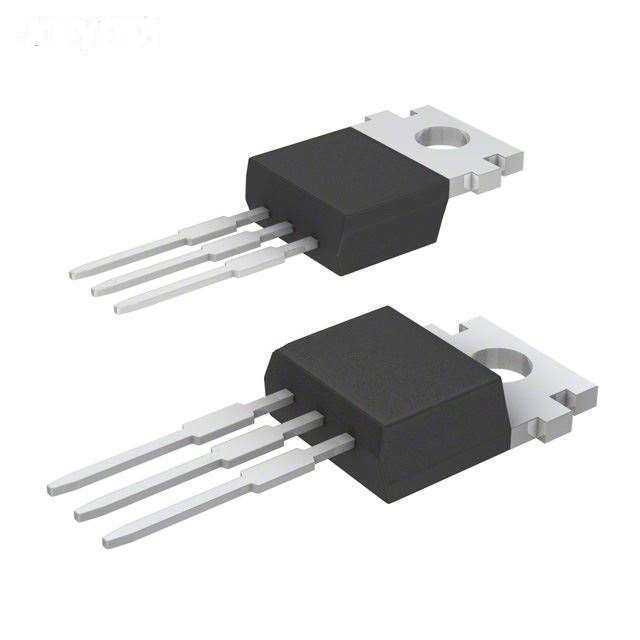

Package / Case | TO-220-3 | |
Supplier Device Package | TO-220-3 | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NP84N075MUE-S18-AY | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NP84N075MUE-S18-AY is in stock for immediate shipping now. We are the distributor of Renesas Electronics America all series components. The condition of NP84N075MUE-S18-AY is new and unused, you can buy NP84N075MUE-S18-AY Renesas Electronics America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NP84N075MUE-S18-AY.
