| Manufacturer Part Number: | NSBA144EF3T5G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single, Pre-Biased |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS PREBIAS PNP 254MW SOT1123 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NSBA144EF3T5G Datasheet |
| Internal Part Number | 898-NSBA144EF3T5G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Wire Bond 01/Dec/2010 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single, Pre-Biased | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | PNP - Pre-Biased | |
| Current - Collector (Ic) (Max) | 100mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Resistor - Base (R1) (Ohms) | 47k | |
| Resistor - Emitter Base (R2) (Ohms) | 47k | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V | |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA | |
| Current - Collector Cutoff (Max) | 500nA | |
| Frequency - Transition | - | |
| Power - Max | 254mW | |
| Mounting Type | Surface Mount | |

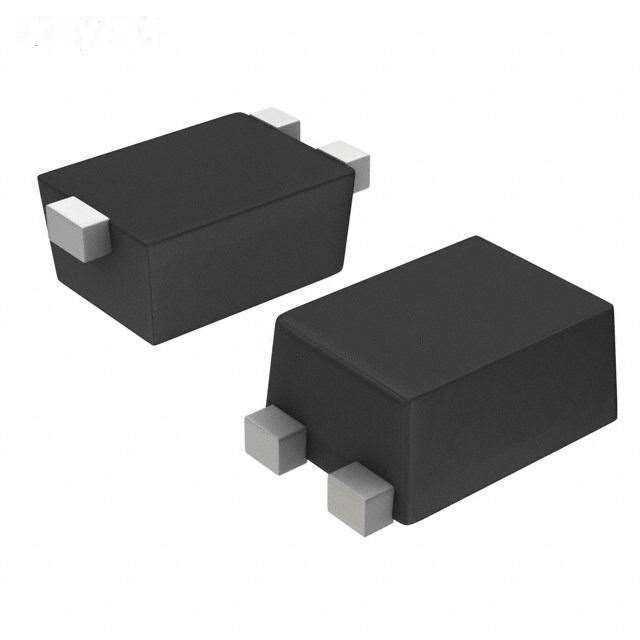

| Package / Case | SOT-1123 | |
| Supplier Device Package | SOT-1123 | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NSBA144EF3T5G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NSBA144EF3T5G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NSBA144EF3T5G is new and unused, you can buy NSBA144EF3T5G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NSBA144EF3T5G.
