| Manufacturer Part Number: | NSS12100UW3TCG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS PNP 12V 1A WDFN3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NSS12100UW3TCG Datasheet |
| Internal Part Number | 898-NSS12100UW3TCG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Covering Tape/Material Chg 20/May/2016 | |
| Online Catalog | PNP Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | PNP | |
| Current - Collector (Ic) (Max) | 1A | |
| Voltage - Collector Emitter Breakdown (Max) | 12V | |
| Vce Saturation (Max) @ Ib, Ic | 440mV @ 100mA, 1A | |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 500mA, 2V | |
| Power - Max | 740mW | |
| Frequency - Transition | 200MHz | |
| Mounting Type | Surface Mount | |

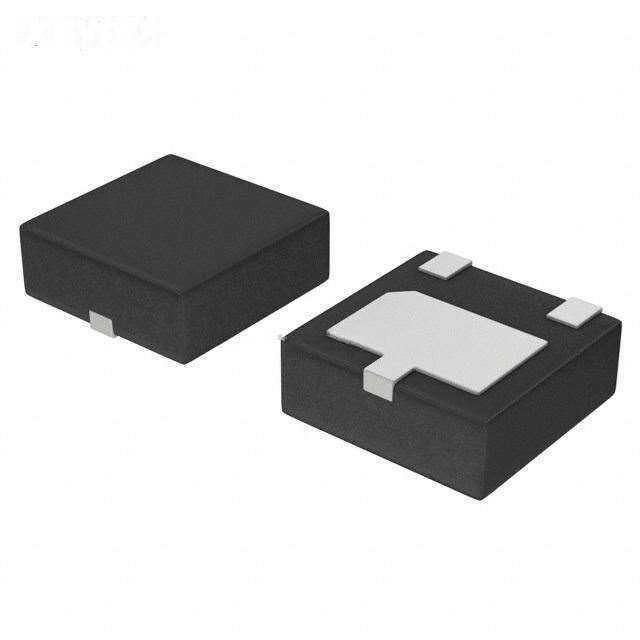

| Package / Case | 3-WDFN Exposed Pad | |
| Supplier Device Package | 3-WDFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NSS12100UW3TCG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NSS12100UW3TCG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NSS12100UW3TCG is new and unused, you can buy NSS12100UW3TCG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NSS12100UW3TCG.
