| Manufacturer Part Number: | NTLJD3119CTAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N/P-CH 20V 6WDFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NTLJD3119CTAG Datasheet |
| Internal Part Number | 898-NTLJD3119CTAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 30/Mar/2012 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | µCool™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | N and P-Channel | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 2.6A, 2.3A | |
| Rds On (Max) @ Id, Vgs | 65 mOhm @ 3.8A, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 3.7nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 271pF @ 10V | |
| Power - Max | 710mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

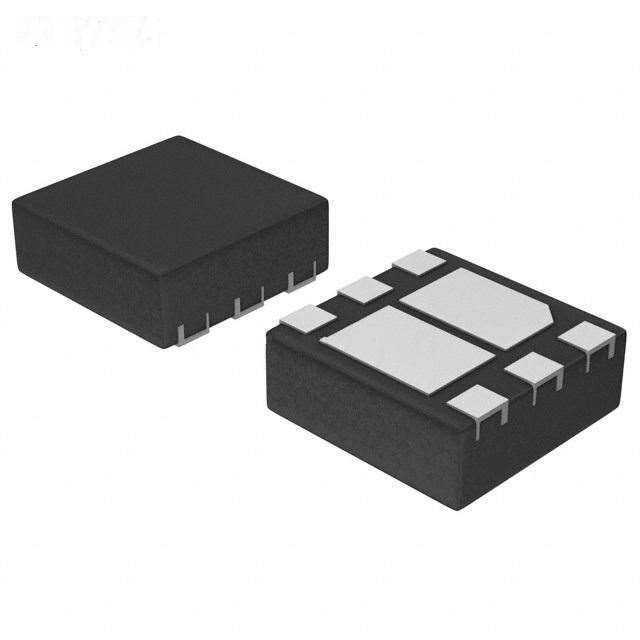

| Package / Case | 6-WDFN Exposed Pad | |
| Supplier Device Package | 6-WDFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NTLJD3119CTAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NTLJD3119CTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NTLJD3119CTAG is new and unused, you can buy NTLJD3119CTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NTLJD3119CTAG.
