Manufacturer Part Number: | OPA501AM |
---|---|
Manufacturer: | T-I |
Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Power Amplifier 1 Circuit HERMETIC TO-3, Isolated Case |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | OPA501AM Datasheet |
Internal Part Number | 898-OPA501AM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
Manufacturer | T I | |
Series | - | |
Packaging | Tube | |
Part Status | Obsolete | |
Amplifier Type | Power | |
Number of Circuits | 1 | |
Output Type | - | |
Slew Rate | 1.35 V/µs | |
Gain Bandwidth Product | 1MHz | |
-3db Bandwidth | - | |
Current - Input Bias | 15nA | |
Voltage - Input Offset | 5mV | |
Current - Supply | 2.6mA | |
Current - Output / Channel | 10A | |
Voltage - Supply, Single/Dual (±) | ±10V ~ 36V | |
Operating Temperature | -25°C ~ 85°C | |
Mounting Type | Through Hole | |

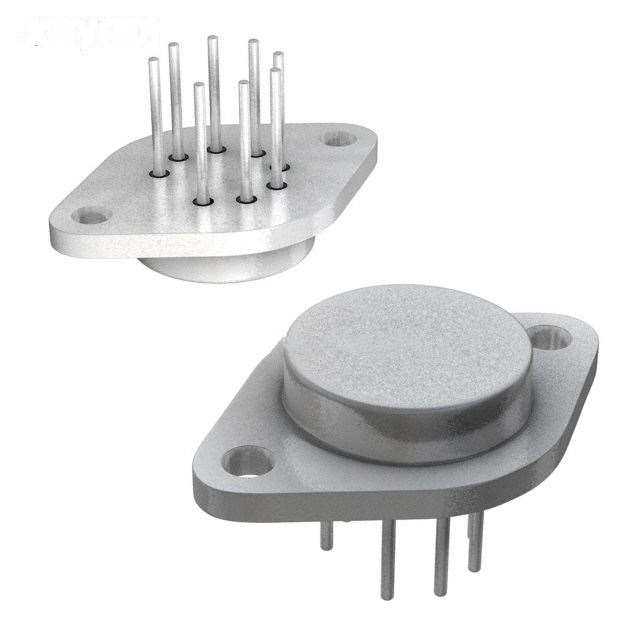

Package / Case | TO-3-8 | |
Supplier Device Package | HERMETIC TO-3, Isolated Case | |
Standard Package | 18 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | OPA501AM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
OPA501AM is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of OPA501AM is new and unused, you can buy OPA501AM T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for OPA501AM.
