| Manufacturer Part Number: | PAM2325AGPADJ |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3.5A 12-UFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PAM2325AGPADJ Datasheet |
| Internal Part Number | 898-PAM2325AGPADJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 1V | |
| Voltage - Output (Max) | 4V | |
| Current - Output | 3.5A | |
| Frequency - Switching | 1.2MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

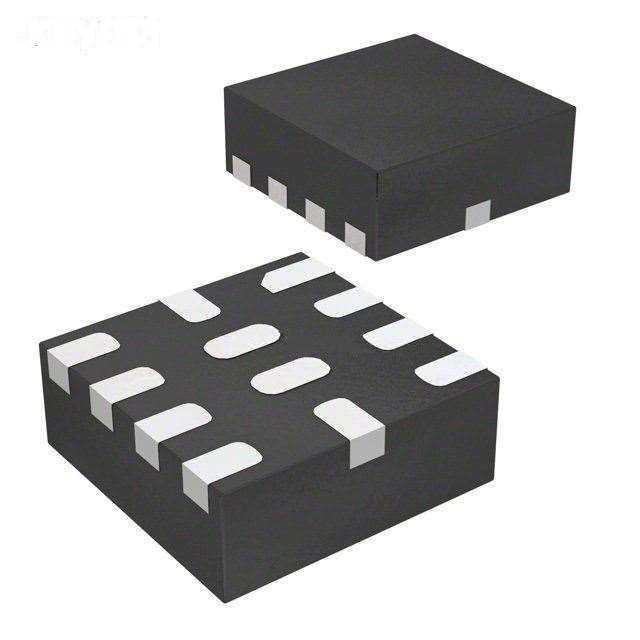

| Package / Case | 12-UFQFN Exposed Pad | |
| Supplier Device Package | 12-QFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PAM2325AGPADJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PAM2325AGPADJ is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of PAM2325AGPADJ is new and unused, you can buy PAM2325AGPADJ Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PAM2325AGPADJ.
