| Manufacturer Part Number: | PD69101ILQ-TR |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - Power Over Ethernet (PoE) Controllers |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Over Ethernet Controller 1 Channel 802.3at (PoE+), 802.3af (PoE) 24-QFN (4x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PD69101ILQ-TR Datasheet |
| Internal Part Number | 898-PD69101ILQ-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Power Over Ethernet | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Over Ethernet (PoE) Controllers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Controller (PSE) | |
| Number of Channels | 1 | |
| Power - Max | - | |
| Internal Switch(s) | Yes | |
| Auxiliary Sense | Yes | |
| Standards | 802.3at (PoE+), 802.3af (PoE) | |
| Voltage - Supply | 44 V ~ 57 V | |
| Current - Supply | 10mA | |
| Operating Temperature | -40°C ~ 85°C | |

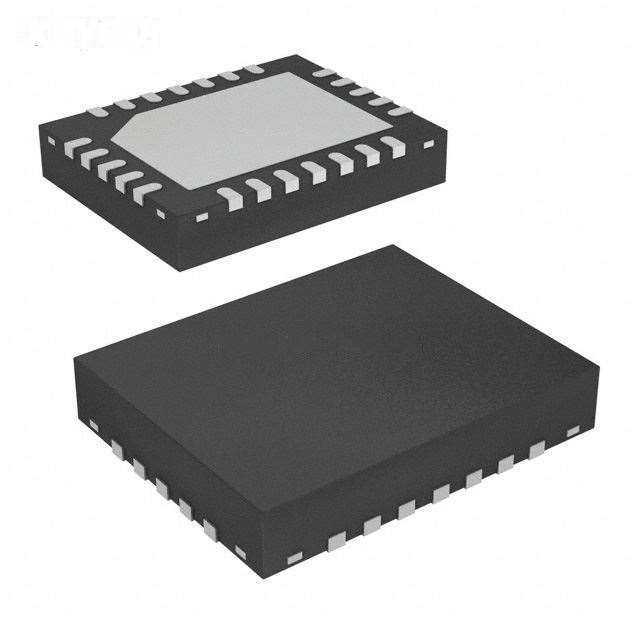

| Package / Case | 24-VFQFN Exposed Pad | |
| Supplier Device Package | 24-QFN (4x5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PD69101ILQ-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PD69101ILQ-TR is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of PD69101ILQ-TR is new and unused, you can buy PD69101ILQ-TR Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PD69101ILQ-TR.
