| Manufacturer Part Number: | PI5101-01-LGIZ |
|---|---|
| Manufacturer: | Vicor Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 24953 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 5V 60A 3LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PI5101-01-LGIZ Datasheet |
| Internal Part Number | 898-PI5101-01-LGIZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Vicor Corporation | |
| Series | Picor® µRDS(on)FET® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate, 1.2V Drive | |
| Drain to Source Voltage (Vdss) | 5V | |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) | |
| Rds On (Max) @ Id, Vgs | 0.45 mOhm @ 60A, 4.5V | |
| Vgs(th) (Max) @ Id | 800mV @ 1mA | |
| Gate Charge (Qg) @ Vgs | 65nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 7600pF @ 5V | |
| Power - Max | 3.1W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

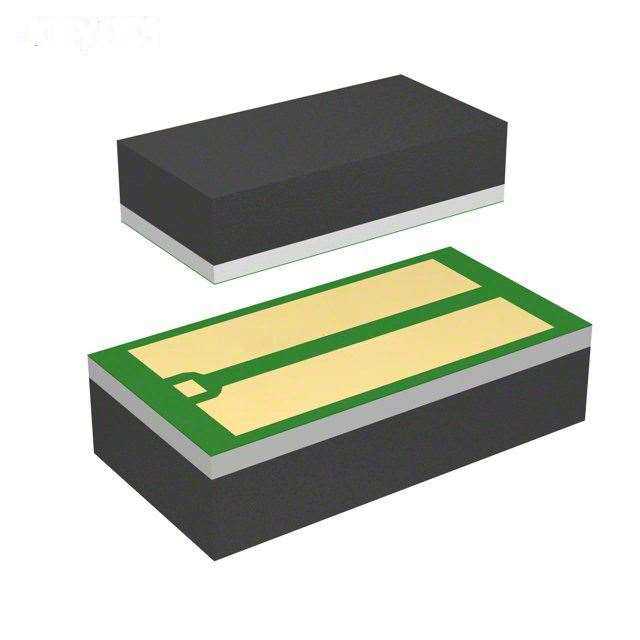

| Package / Case | 3-FLGA | |
| Supplier Device Package | 3-LGA (4.1x8) | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PI5101-01-LGIZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PI5101-01-LGIZ is in stock for immediate shipping now. We are the distributor of Vicor Corporation all series components. The condition of PI5101-01-LGIZ is new and unused, you can buy PI5101-01-LGIZ Vicor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PI5101-01-LGIZ.
