Manufacturer Part Number: | PMEG10020AELPX |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 100V 2A SOD128 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PMEG10020AELPX Datasheet |
Internal Part Number | 898-PMEG10020AELPX | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Schottky Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | NXP Semiconductors | |
Series | Automotive, AEC-Q101 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 100V | |
Current - Average Rectified (Io) | 2A | |
Voltage - Forward (Vf) (Max) @ If | 770mV @ 2A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 5ns | |
Current - Reverse Leakage @ Vr | 300nA @ 100V | |
Capacitance @ Vr, F | 135pF @ 1V, 1MHz | |
Mounting Type | Surface Mount | |

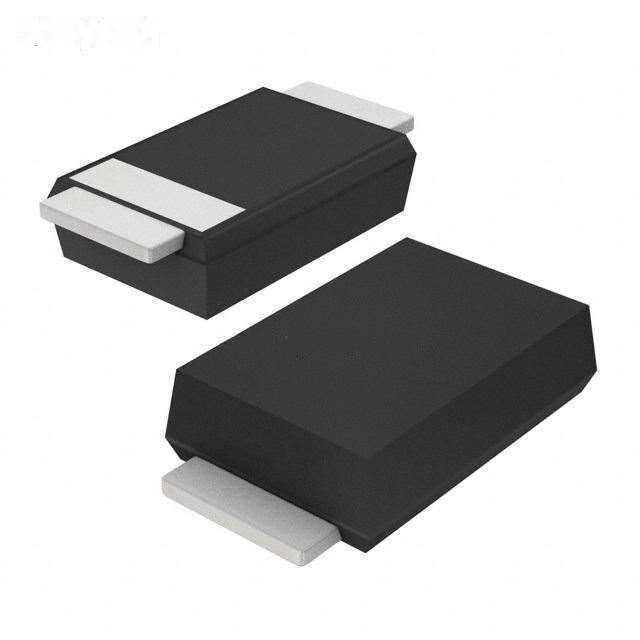

Package / Case | SOD-128 | |
Supplier Device Package | SOD-128 | |
Operating Temperature - Junction | 175°C (Max) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PMEG10020AELPX | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PMEG10020AELPX is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PMEG10020AELPX is new and unused, you can buy PMEG10020AELPX NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMEG10020AELPX.
