| Manufacturer Part Number: | PMEG2005EPK,315 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 17010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 20V 500MA 2DFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PMEG2005EPK,315 Datasheet |
| Internal Part Number | 898-PMEG2005EPK,315 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 500mA | |
| Voltage - Forward (Vf) (Max) @ If | 410mV @ 500mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 3ns | |
| Current - Reverse Leakage @ Vr | 130µA @ 10V | |
| Capacitance @ Vr, F | 35pF @ 1V, 1MHz | |
| Mounting Type | Surface Mount | |

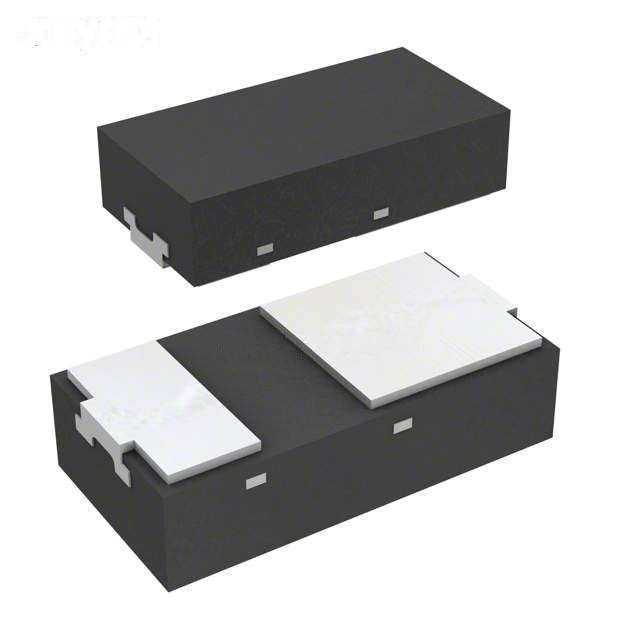

| Package / Case | 2-XDFN | |
| Supplier Device Package | 2-DFN1608D (1.6x0.8) | |
| Operating Temperature - Junction | 150°C (Max) | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PMEG2005EPK,315 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PMEG2005EPK,315 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PMEG2005EPK,315 is new and unused, you can buy PMEG2005EPK,315 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMEG2005EPK,315.
