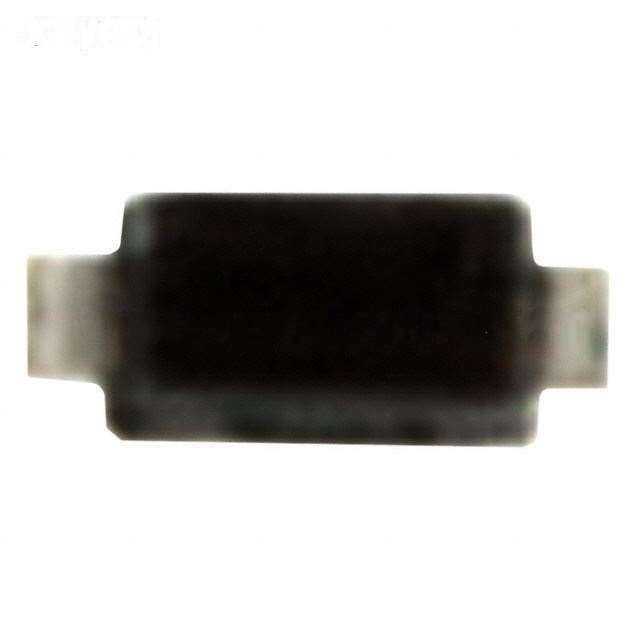

Manufacturer Part Number: | RB520G-30-TP |
---|---|
Manufacturer: | Micro Commercial Co |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 17010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 30V 100MA SOD723 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RB520G-30-TP Datasheet |
Internal Part Number | 898-RB520G-30-TP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Diode Handling and Mounting | |
Online Catalog | Schottky Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Micro Commercial Co | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 30V | |
Current - Average Rectified (Io) | 100mA | |
Voltage - Forward (Vf) (Max) @ If | 450mV @ 10mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 500nA @ 10V | |
Capacitance @ Vr, F | - | |
Mounting Type | Surface Mount | |
Package / Case | SOD-723 | |
Supplier Device Package | SOD-723 | |
Operating Temperature - Junction | 125°C (Max) | |
Standard Package | 8,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RB520G-30-TP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RB520G-30-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of RB520G-30-TP is new and unused, you can buy RB520G-30-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RB520G-30-TP.
