| Manufacturer Part Number: | RQ5L015SPTL |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 60V 1.5A TSMT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RQ5L015SPTL Datasheet |
| Internal Part Number | 898-RQ5L015SPTL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | TSMT Package Updates 24/Dec/2014 | |
| Online Catalog | P-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Ta) | |
| Rds On (Max) @ Id, Vgs | 280 mOhm @ 1.5A, 10V | |
| Vgs(th) (Max) @ Id | 3V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 10nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 500pF @ 10V | |
| Power - Max | 1W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-96 | |

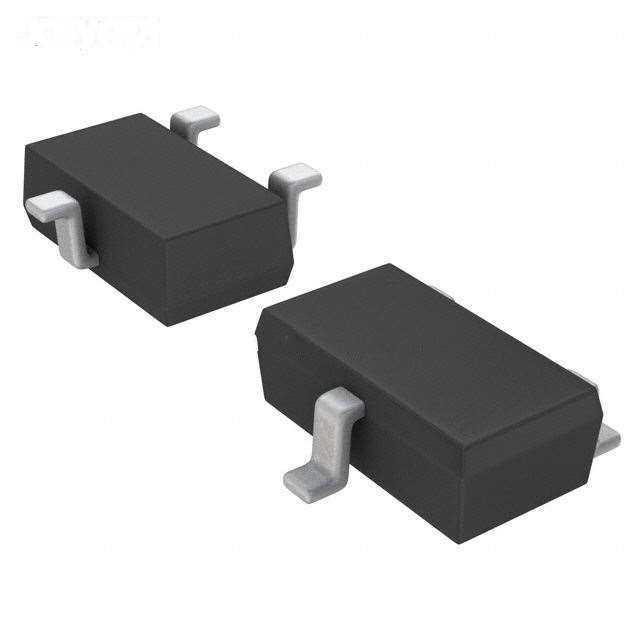

| Supplier Device Package | TSMT3 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RQ5L015SPTL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RQ5L015SPTL is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of RQ5L015SPTL is new and unused, you can buy RQ5L015SPTL Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RQ5L015SPTL.
