| Manufacturer Part Number: | RS2BHE3_A/I |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 100V 1.5A DO214AA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RS2BHE3_A/I Datasheet |
| Internal Part Number | 898-RS2BHE3_A/I | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) | 1.5A | |
| Voltage - Forward (Vf) (Max) @ If | 1.3V @ 1.5A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 150ns | |
| Current - Reverse Leakage @ Vr | 5µA @ 100V | |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz | |
| Mounting Type | Surface Mount | |

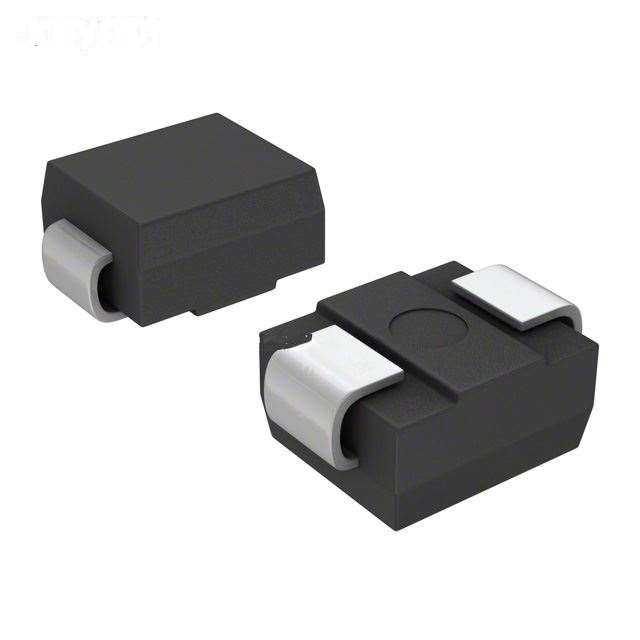

| Package / Case | DO-214AA, SMB | |
| Supplier Device Package | DO-214AA (SMB) | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Standard Package | 3,200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RS2BHE3_A/I | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RS2BHE3_A/I is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of RS2BHE3_A/I is new and unused, you can buy RS2BHE3_A/I Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RS2BHE3_A/I.
