| Manufacturer Part Number: | RT7263AZQW |
|---|---|
| Manufacturer: | Richtek USA Inc. |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.808V 1 Output 3A 14-WFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RT7263AZQW Datasheet |
| Internal Part Number | 898-RT7263AZQW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Pb-Free/ Green Product Statement | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Richtek USA Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 21V | |
| Voltage - Output (Min/Fixed) | 0.808V | |
| Voltage - Output (Max) | 15V | |
| Current - Output | 3A | |
| Frequency - Switching | 500kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

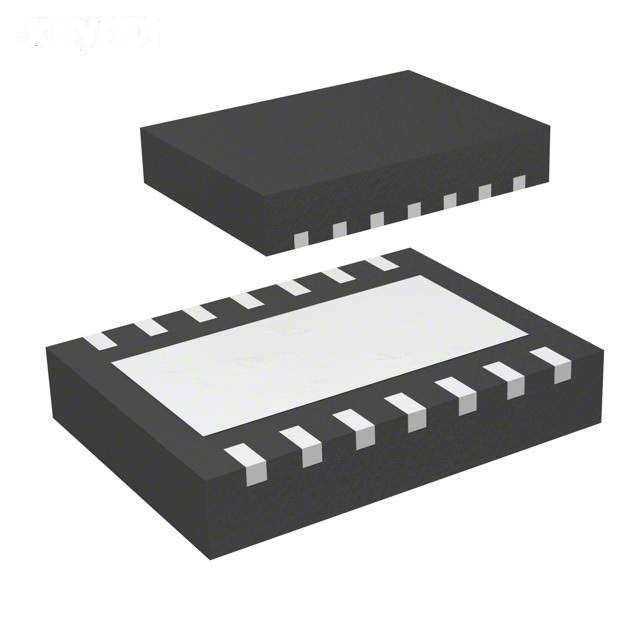

| Package / Case | 14-WFDFN Exposed Pad | |
| Supplier Device Package | 14-WDFN (4x3) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RT7263AZQW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RT7263AZQW is in stock for immediate shipping now. We are the distributor of Richtek USA Inc. all series components. The condition of RT7263AZQW is new and unused, you can buy RT7263AZQW Richtek USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RT7263AZQW.
