| Manufacturer Part Number: | RT8209BGQW |
|---|---|
| Manufacturer: | Richtek USA Inc. |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Regulator Positive Output Step-Down DC-DC Controller IC 14-WQFN (3.5x3.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RT8209BGQW Datasheet |
| Internal Part Number | 898-RT8209BGQW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Pb-Free/ Green Product Statement | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Richtek USA Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Discontinued | |
| Output Type | Transistor Driver | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Number of Outputs | 1 | |
| Output Phases | 1 | |
| Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 5.5 V | |
| Frequency - Switching | - | |
| Duty Cycle (Max) | - | |
| Synchronous Rectifier | Yes | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Current Limit, Enable, On Time Control, Phase Control, Power Good | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 14-PowerWFDFN | |

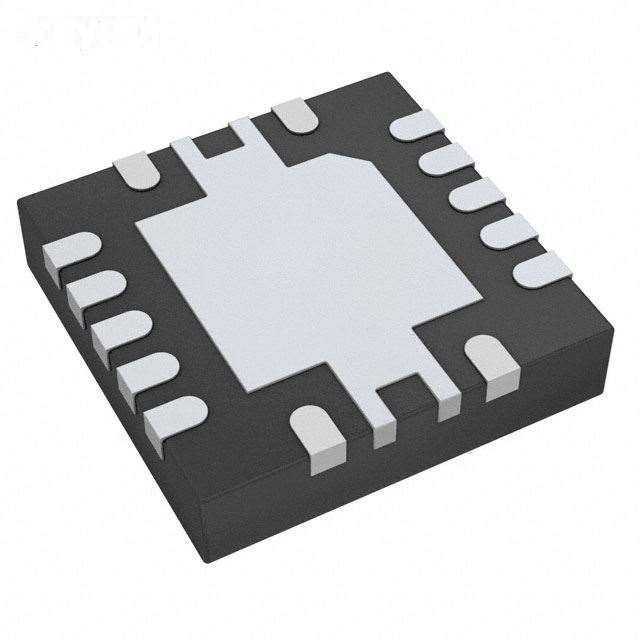

| Supplier Device Package | 14-WQFN (3.5x3.5) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RT8209BGQW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RT8209BGQW is in stock for immediate shipping now. We are the distributor of Richtek USA Inc. all series components. The condition of RT8209BGQW is new and unused, you can buy RT8209BGQW Richtek USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RT8209BGQW.
