Manufacturer Part Number: | RT9703GS |
---|---|
Manufacturer: | Richtek USA Inc. |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC PWR SW USB 3A 8SOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RT9703GS Datasheet |
Internal Part Number | 898-RT9703GS | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | Pb-Free/ Green Product Statement | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Richtek USA Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 1 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | N-Channel | |
Interface | On/Off | |
Voltage - Load | 2 V ~ 5.5 V | |
Voltage - Supply (Vcc/Vdd) | Not Required | |
Current - Output (Max) | 3A | |
Rds On (Typ) | 80 mOhm | |
Input Type | Non-Inverting | |
Features | Status Flag | |
Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | |
Operating Temperature | -20°C ~ 100°C (TJ) | |

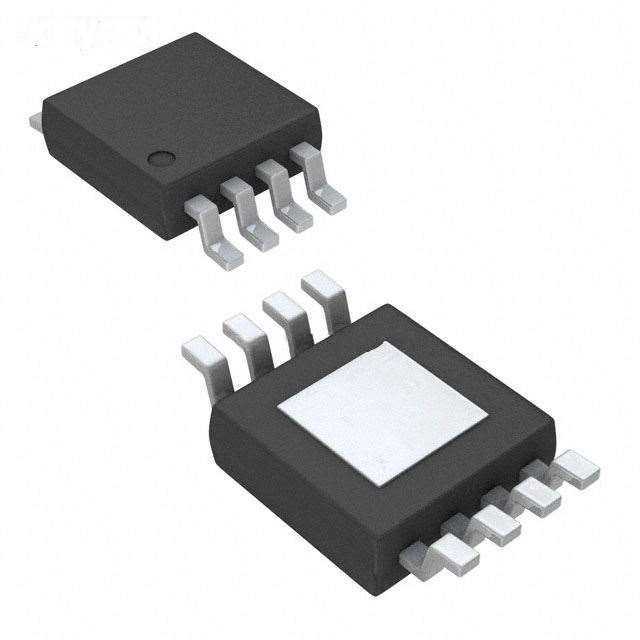

Package / Case | 8-SOIC (0.154", 3.90mm Width) | |
Supplier Device Package | 8-SOP | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RT9703GS | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RT9703GS is in stock for immediate shipping now. We are the distributor of Richtek USA Inc. all series components. The condition of RT9703GS is new and unused, you can buy RT9703GS Richtek USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RT9703GS.
