| Manufacturer Part Number: | S3MB |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GP 1000V 3A SMB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S3MB Datasheet |
| Internal Part Number | 898-S3MB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1000V (1kV) | |
| Current - Average Rectified (Io) | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 1.15V @ 3A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 1.5µs | |
| Current - Reverse Leakage @ Vr | 10µA @ 1000V | |
| Capacitance @ Vr, F | 18pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |

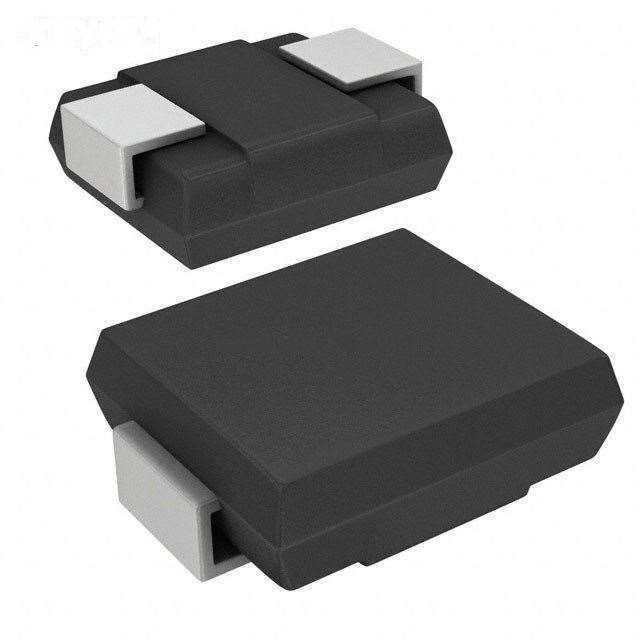

| Package / Case | DO-214AA, SMB | |
| Supplier Device Package | DO-214AA (SMB) | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S3MB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S3MB is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of S3MB is new and unused, you can buy S3MB Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S3MB.
