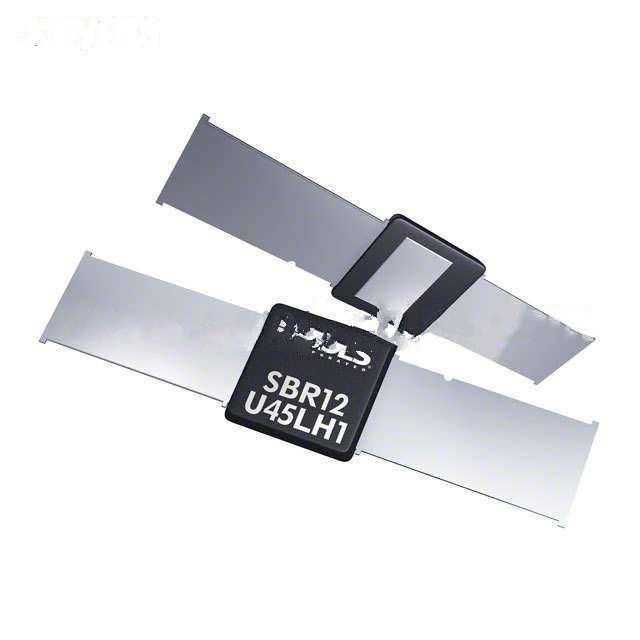

| Manufacturer Part Number: | SBR12U45LH1-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SBR 45V 12A POWERDI5SP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SBR12U45LH1-13 Datasheet |
| Internal Part Number | 898-SBR12U45LH1-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Featured Product | SBR12U45LH1 Low-Profile Rectifier | |
| PCN Assembly/Origin | Leadframe/Clip Bond Supplier 06/Nov/2014 | |
| Online Catalog | Super Barrier Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | SBR® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Super Barrier | |
| Voltage - DC Reverse (Vr) (Max) | 45V | |
| Current - Average Rectified (Io) | 12A | |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 12A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 300µA @ 45V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |
| Package / Case | PowerDI™ 5SP | |
| Supplier Device Package | PowerDI5SP™ | |
| Operating Temperature - Junction | * | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SBR12U45LH1-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SBR12U45LH1-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of SBR12U45LH1-13 is new and unused, you can buy SBR12U45LH1-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBR12U45LH1-13.
