| Manufacturer Part Number: | SBR20100CTP |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Super Barrier 100V 10A Through Hole TO-220-3 Isolated Tab |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SBR20100CTP Datasheet |
| Internal Part Number | 898-SBR20100CTP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Super Barrier Rectifier (SBR®) | |
| RoHS Information | RoHS Cert of Compliance | |
| Featured Product | Super Barrier Rectifiers | |
| PCN Obsolescence/ EOL | Multiple Devices 19/Feb/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Diodes Incorporated | |
| Series | SBR® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Super Barrier | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) (per Diode) | 10A | |
| Voltage - Forward (Vf) (Max) @ If | 820mV @ 10A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 100µA @ 100V | |
| Mounting Type | Through Hole | |

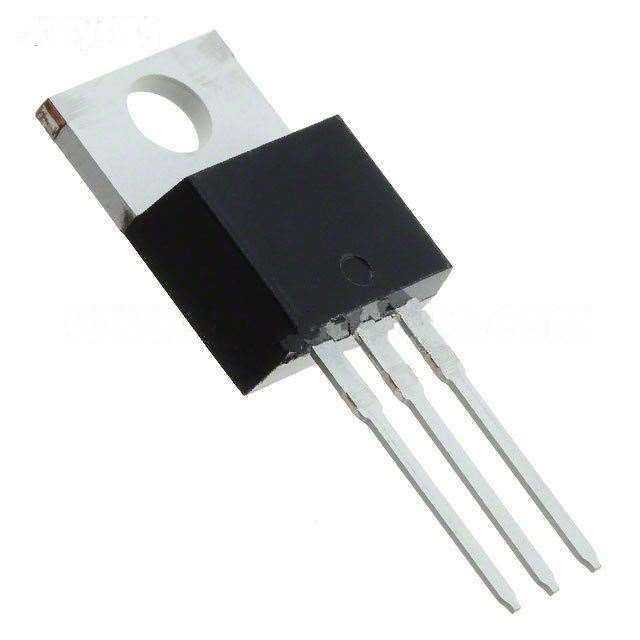

| Package / Case | TO-220-3 Isolated Tab | |
| Supplier Device Package | ITO-220S | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SBR20100CTP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SBR20100CTP is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of SBR20100CTP is new and unused, you can buy SBR20100CTP Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SBR20100CTP.
