| Manufacturer Part Number: | SCM1245MF |
|---|---|
| Manufacturer: | Sanken |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC BRIDGE DRIVER PAR SCM33 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SCM1245MF Datasheet |
| Internal Part Number | 898-SCM1245MF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Sanken | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Configuration | Half Bridge (3) | |
| Applications | AC Motors | |
| Interface | Logic | |
| Load Type | Inductive | |
| Technology | IGBT | |
| Rds On (Typ) | - | |
| Current - Output / Channel | 20A | |
| Current - Peak Output | 30A | |
| Voltage - Supply | 13.5 V ~ 16.5 V | |
| Voltage - Load | 400V (Max) | |
| Operating Temperature | 125°C (TJ) | |
| Features | Auto Restart, Bootstrap Circuit | |
| Fault Protection | Current Limiting, Over Temperature, UVLO | |
| Mounting Type | Through Hole | |

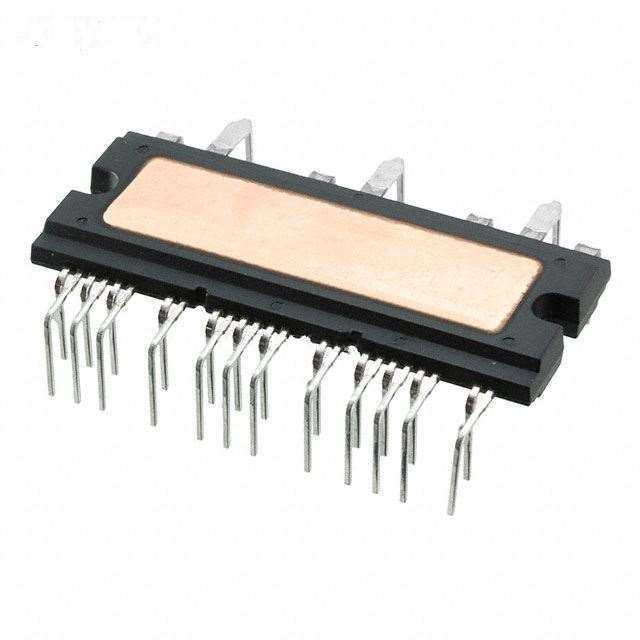

| Package / Case | 33-PowerDIP (1.307", 33.20mm) Exposed Pad | |
| Supplier Device Package | 33-PowerDIP LF2552 | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SCM1245MF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SCM1245MF is in stock for immediate shipping now. We are the distributor of Sanken all series components. The condition of SCM1245MF is new and unused, you can buy SCM1245MF Sanken with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SCM1245MF.
