| Manufacturer Part Number: | SD101A-T |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Schottky 60V 15mA (DC) Through Hole DO-35 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SD101A-T Datasheet |
| Internal Part Number | 898-SD101A-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Analog/Discrete 10/June/2010 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 60V | |
| Current - Average Rectified (Io) | 15mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 15mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 1ns | |
| Current - Reverse Leakage @ Vr | 200nA @ 50V | |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz | |
| Mounting Type | Through Hole | |

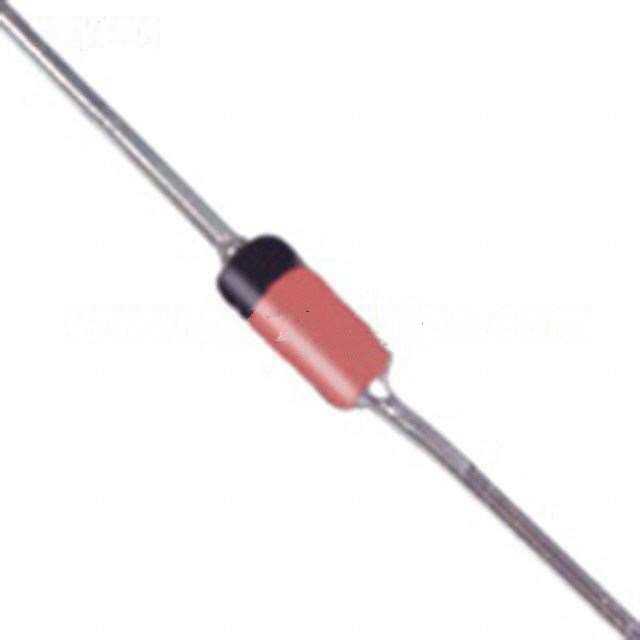

| Package / Case | DO-204AH, DO-35, Axial | |
| Supplier Device Package | DO-35 | |
| Operating Temperature - Junction | -65°C ~ 175°C | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SD101A-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SD101A-T is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of SD101A-T is new and unused, you can buy SD101A-T Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD101A-T.
