| Manufacturer Part Number: | SDM02U30LP3-7B |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 30V 100MA 2DFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SDM02U30LP3-7B Datasheet |
| Internal Part Number | 898-SDM02U30LP3-7B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| PCN Other | Copper Bond Wire and Wafer Source 07/Nov/2013 | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 100mA | |
| Voltage - Forward (Vf) (Max) @ If | 370mV @ 10mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 4µA @ 30V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |

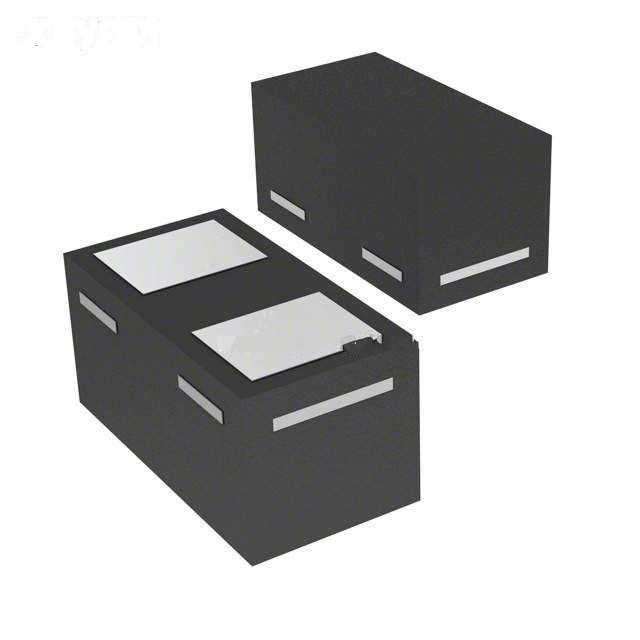

| Package / Case | 2-XFDFN | |
| Supplier Device Package | 2-X3-DFN0603 | |
| Operating Temperature - Junction | -65°C ~ 150°C | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SDM02U30LP3-7B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SDM02U30LP3-7B is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of SDM02U30LP3-7B is new and unused, you can buy SDM02U30LP3-7B Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SDM02U30LP3-7B.
