| Manufacturer Part Number: | SDM6CC-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 6 Common Cathode Schottky 30V 200mA (DC) Surface Mount 6-UFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SDM6CC-7 Datasheet |
| Internal Part Number | 898-SDM6CC-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Configuration | 6 Common Cathode | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 570mV @ 30mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 5ns | |
| Current - Reverse Leakage @ Vr | 700nA @ 30V | |
| Mounting Type | Surface Mount | |

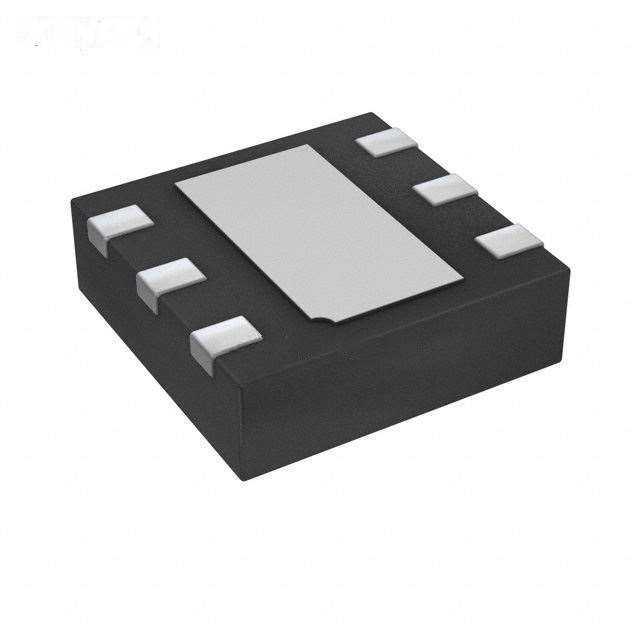

| Package / Case | 6-UFDFN Exposed Pad | |
| Supplier Device Package | 6-DFN1616 (1.6x1.6) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SDM6CC-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SDM6CC-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of SDM6CC-7 is new and unused, you can buy SDM6CC-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SDM6CC-7.
