| Manufacturer Part Number: | SMD16PL-TP |
|---|---|
| Manufacturer: | Micro Commercial Co |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 10935 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 60V 1A SOD123FL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMD16PL-TP Datasheet |
| Internal Part Number | 898-SMD16PL-TP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Auto-Soldering Process 01/Aug/2015 | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Micro Commercial Co | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 60V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 700mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 500µA @ 60V | |
| Capacitance @ Vr, F | 110pF @ 4V, 1MHz | |
| Mounting Type | Surface Mount | |

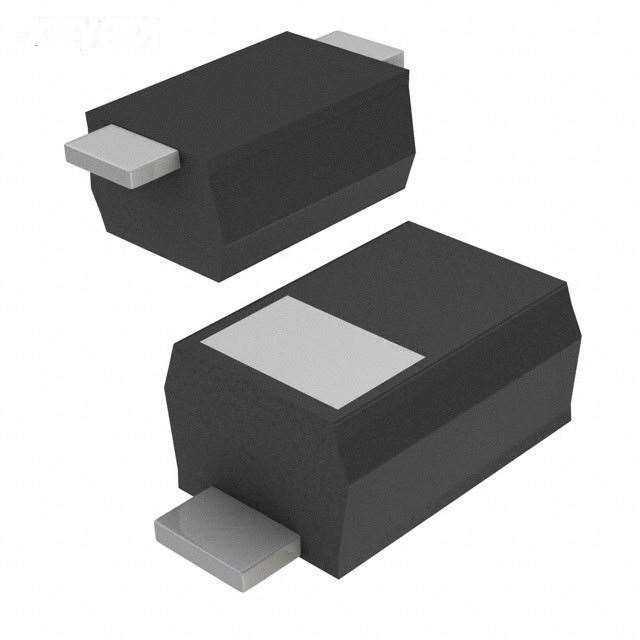

| Package / Case | SOD-123F | |
| Supplier Device Package | SOD-123FL | |
| Operating Temperature - Junction | -55°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMD16PL-TP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMD16PL-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of SMD16PL-TP is new and unused, you can buy SMD16PL-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMD16PL-TP.
