Manufacturer Part Number: | SN74LVC1G332DRY2 |
---|---|
Manufacturer: | T-I |
Product Category: | Logic - Gates and Inverters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | OR Gate IC 1 Channel 6-SON (1.45x1) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SN74LVC1G332DRY2 Datasheet |
Internal Part Number | 898-SN74LVC1G332DRY2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Manufacturer Product Page | SN74LVC1G332DRY2 Specifications | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters | |
Manufacturer | T I | |
Series | 74LVC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Logic Type | OR Gate | |
Number of Circuits | 1 | |
Number of Inputs | 3 | |
Features | - | |
Voltage - Supply | 1.65 V ~ 5.5 V | |
Current - Quiescent (Max) | 10µA | |
Current - Output High, Low | 32mA, 32mA | |
Logic Level - Low | 0.7 V ~ 0.8 V | |
Logic Level - High | 1.7 V ~ 2 V | |
Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |

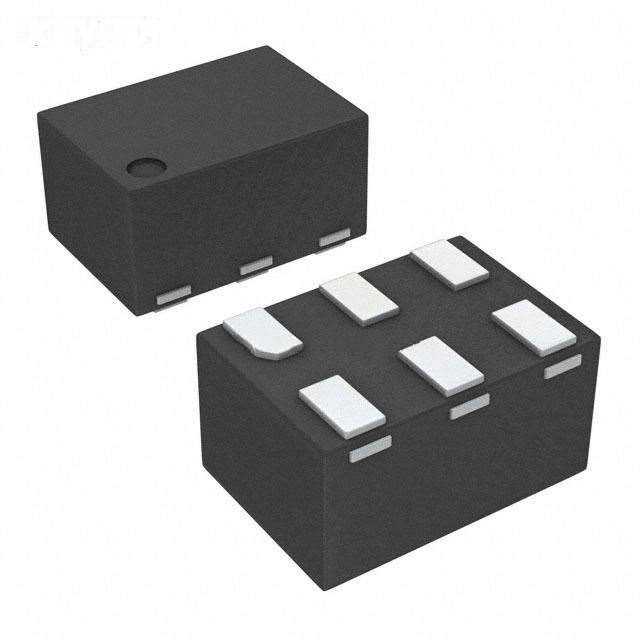

Supplier Device Package | 6-SON (1.45x1) | |
Package / Case | 6-UFDFN | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SN74LVC1G332DRY2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SN74LVC1G332DRY2 is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of SN74LVC1G332DRY2 is new and unused, you can buy SN74LVC1G332DRY2 T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SN74LVC1G332DRY2.
