Manufacturer Part Number: | SN74LVC1T45DRLRG4 |
---|---|
Manufacturer: | T-I |
Product Category: | Logic - Translators, Level Shifters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Voltage Level Translator Bidirectional 1 Circuit 1 Channel 420Mbps 6-SOT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SN74LVC1T45DRLRG4 Datasheet |
Internal Part Number | 898-SN74LVC1T45DRLRG4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Manufacturer Product Page | SN74LVC1T45DRLRG4 Specifications | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Translators, Level Shifters | |
Manufacturer | T I | |
Series | 74LVC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Translator Type | Voltage Level | |
Channel Type | Bidirectional | |
Number of Circuits | 1 | |
Channels per Circuit | 1 | |
Voltage - VCCA | 1.65 V ~ 5.5 V | |
Voltage - VCCB | 1.65 V ~ 5.5 V | |
Input Signal | - | |
Output Signal | - | |
Output Type | Tri-State, Non-Inverted | |
Data Rate | 420Mbps | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Features | - | |
Mounting Type | Surface Mount | |

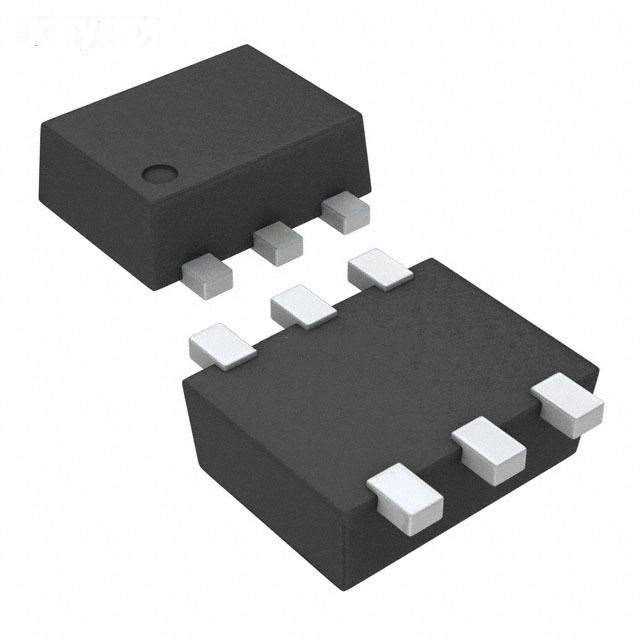

Package / Case | SOT-563, SOT-666 | |
Supplier Device Package | 6-SOT | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SN74LVC1T45DRLRG4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SN74LVC1T45DRLRG4 is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of SN74LVC1T45DRLRG4 is new and unused, you can buy SN74LVC1T45DRLRG4 T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SN74LVC1T45DRLRG4.
