Manufacturer Part Number: | SN74LVC2G02YEAR |
---|---|
Manufacturer: | T-I |
Product Category: | Logic - Gates and Inverters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | NOR Gate IC 2 Channel 8-DSBGA, 8-WCSP (1.9x0.9) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SN74LVC2G02YEAR Datasheet |
Internal Part Number | 898-SN74LVC2G02YEAR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters | |
Manufacturer | T I | |
Series | 74LVC | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Logic Type | NOR Gate | |
Number of Circuits | 2 | |
Number of Inputs | 2 | |
Features | - | |
Voltage - Supply | 1.65 V ~ 5.5 V | |
Current - Quiescent (Max) | 10µA | |
Current - Output High, Low | 32mA, 32mA | |
Logic Level - Low | 0.7 V ~ 0.8 V | |
Logic Level - High | 1.7 V ~ 2 V | |
Max Propagation Delay @ V, Max CL | 4.4ns @ 5V, 50pF | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |

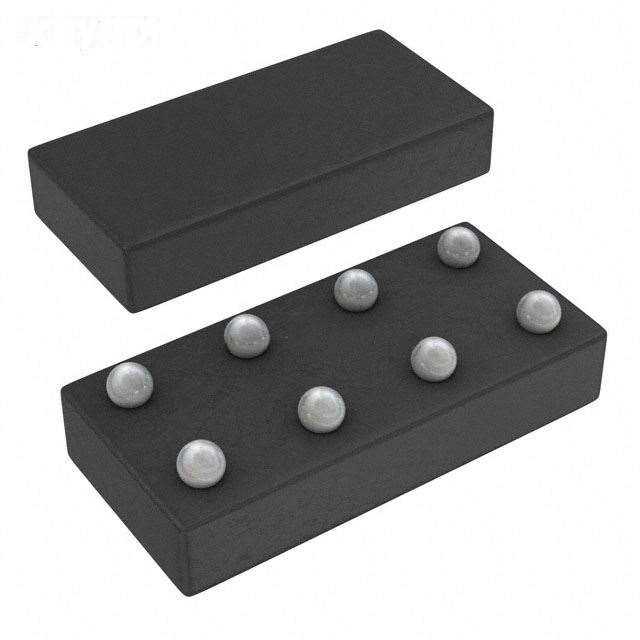

Supplier Device Package | 8-DSBGA, 8-WCSP (1.9x0.9) | |
Package / Case | 8-XFBGA, DSBGA | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SN74LVC2G02YEAR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SN74LVC2G02YEAR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of SN74LVC2G02YEAR is new and unused, you can buy SN74LVC2G02YEAR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SN74LVC2G02YEAR.
