Manufacturer Part Number: | SP7653ER-L |
---|---|
Manufacturer: | Exar Corporation |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 26-VFDFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SP7653ER-L Datasheet |
Internal Part Number | 898-SP7653ER-L | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 20/Jul/2015 | |
PCN Design/Specification | PPF (NiPdAu) Lead Termination Finish 16/Oct/2013 | |
PCN Other | Multiple Changes 04/Oct/2013 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Exar Corporation | |
Series | Power Blox™ | |
Packaging | Bulk | |
Part Status | Obsolete | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 2.5V | |
Voltage - Input (Max) | 20V | |
Voltage - Output (Min/Fixed) | 0.8V | |
Voltage - Output (Max) | 19V | |
Current - Output | 3A | |
Frequency - Switching | 1.3MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

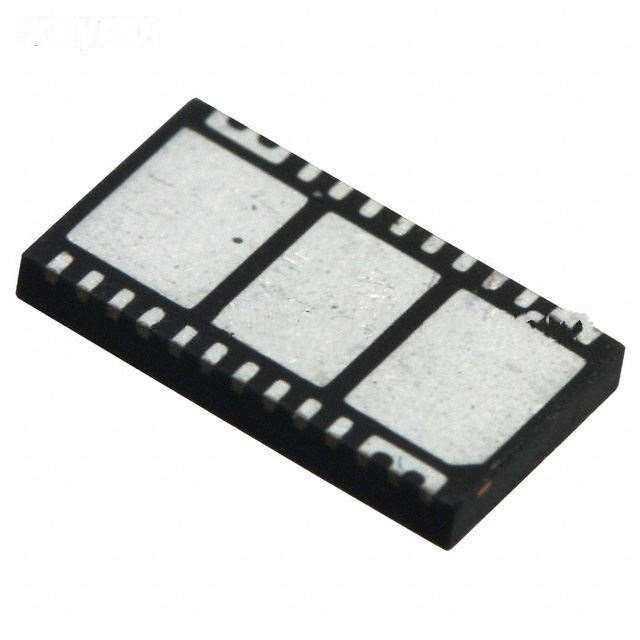

Package / Case | 26-VFDFN Exposed Pad | |
Supplier Device Package | 26-DFN (7x4) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SP7653ER-L | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SP7653ER-L is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of SP7653ER-L is new and unused, you can buy SP7653ER-L Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP7653ER-L.
