| Manufacturer Part Number: | ST1S50PUR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 4A 10-VFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ST1S50PUR Datasheet |
| Internal Part Number | 898-ST1S50PUR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4V | |
| Voltage - Input (Max) | 18V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 15.84V | |
| Current - Output | 4A | |
| Frequency - Switching | 500kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

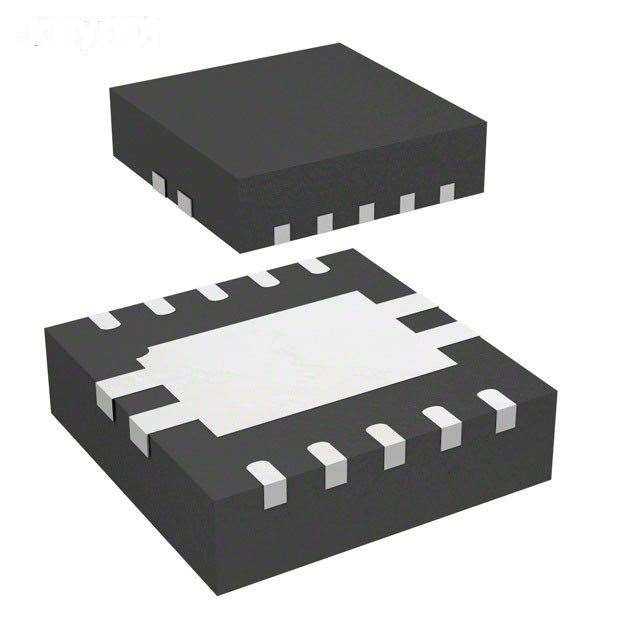

| Package / Case | 10-VFDFN Exposed Pad | |
| Supplier Device Package | 8-VFDFPN (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ST1S50PUR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ST1S50PUR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of ST1S50PUR is new and unused, you can buy ST1S50PUR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ST1S50PUR.
