| Manufacturer Part Number: | STG4160BJR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1 Circuit IC Switch 2:1 500 mOhm 8-FlipChip |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STG4160BJR Datasheet |
| Internal Part Number | 898-STG4160BJR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STG4160 View All Specifications | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 1 | |
| On-State Resistance (Max) | 500 mOhm | |
| Channel-to-Channel Matching (ΔRon) | 10 mOhm | |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.8 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 38ns, 38ns | |
| -3db Bandwidth | 50MHz | |
| Charge Injection | 162pC | |
| Channel Capacitance (CS(off), CD(off)) | 30pF | |
| Current - Leakage (IS(off)) (Max) | 30nA | |
| Crosstalk | -67dB @ 1MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

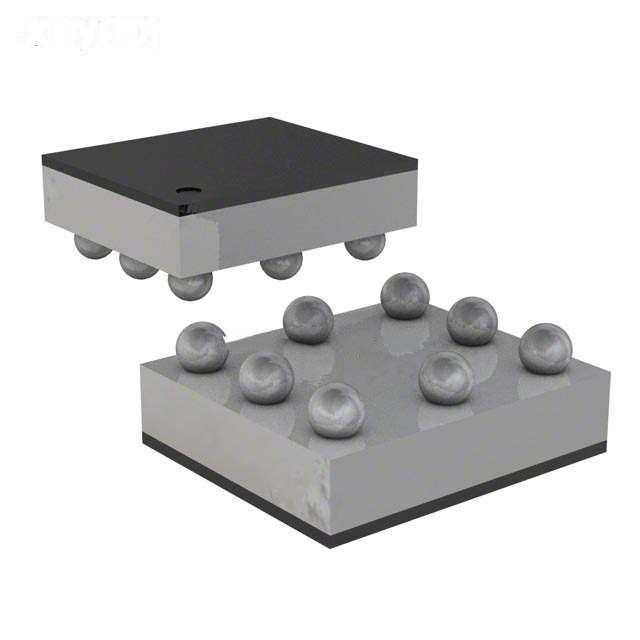

| Package / Case | 8-UFBGA, FCBGA | |
| Supplier Device Package | 8-FlipChip | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STG4160BJR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STG4160BJR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STG4160BJR is new and unused, you can buy STG4160BJR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STG4160BJR.
