| Manufacturer Part Number: | STGW50H60DF |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Trench Field Stop 600V 100A 360W Through Hole TO-247 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STGW50H60DF Datasheet |
| Internal Part Number | 898-STGW50H60DF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Tail-Less 600 V IGBT V Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| IGBT Type | Trench Field Stop | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 100A | |
| Current - Collector Pulsed (Icm) | 200A | |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 50A | |
| Power - Max | 360W | |
| Switching Energy | 890µJ (on), 860µJ (off) | |
| Input Type | Standard | |
| Gate Charge | 217nC | |
| Td (on/off) @ 25°C | 62ns/178ns | |
| Test Condition | 400V, 50A, 10 Ohm, 15V | |
| Reverse Recovery Time (trr) | 55ns | |

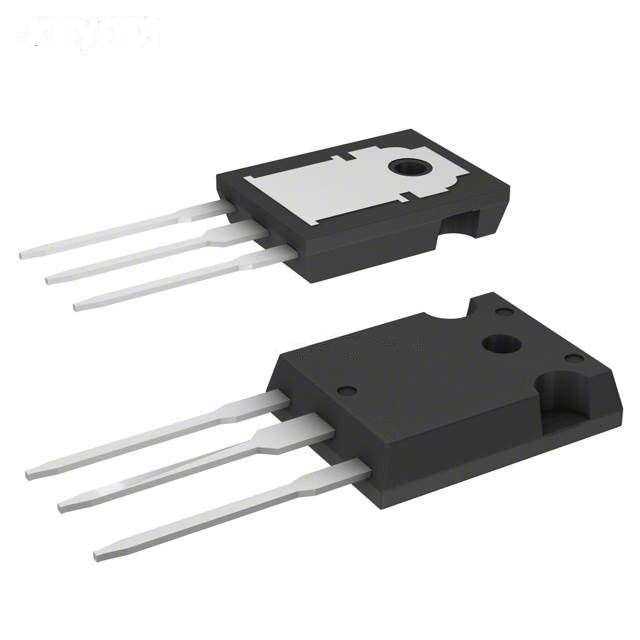

| Package / Case | TO-247-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-247 | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STGW50H60DF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STGW50H60DF is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STGW50H60DF is new and unused, you can buy STGW50H60DF STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STGW50H60DF.
