| Manufacturer Part Number: | STK30N2LLH5 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 25V 30A POLARPAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STK30N2LLH5 Datasheet |
| Internal Part Number | 898-STK30N2LLH5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | STripFET™ V | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | |
| Rds On (Max) @ Id, Vgs | 2.9 mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 18nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 2290pF @ 25V | |
| Power - Max | 5.2W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

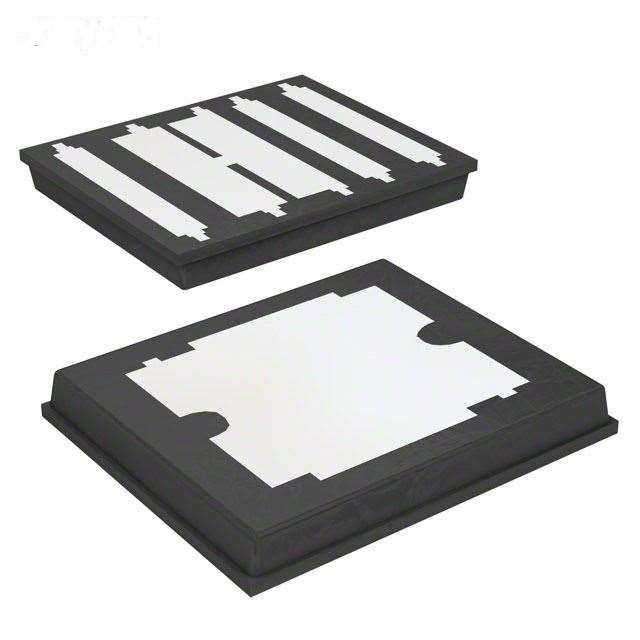

| Package / Case | PolarPak® | |
| Supplier Device Package | PolarPak® | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STK30N2LLH5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STK30N2LLH5 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STK30N2LLH5 is new and unused, you can buy STK30N2LLH5 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STK30N2LLH5.
