Manufacturer Part Number: | STL8N80K5 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 800V 4.5A 8PWRFLAT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | STL8N80K5 Datasheet |
Internal Part Number | 898-STL8N80K5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | N-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | STMicroelectronics | |
Series | SuperMESH5™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 800V | |
Current - Continuous Drain (Id) @ 25°C | 4.5A (Tc) | |
Rds On (Max) @ Id, Vgs | 950 mOhm @ 3A, 10V | |
Vgs(th) (Max) @ Id | 5V @ 100µA | |
Gate Charge (Qg) @ Vgs | 16.5nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 450pF @ 100V | |
Power - Max | 42W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

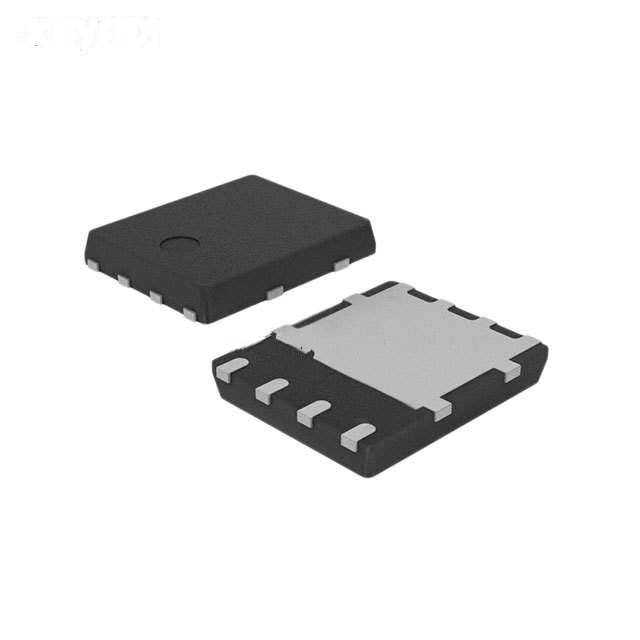

Package / Case | 8-PowerVDFN | |
Supplier Device Package | PowerFlat™ (5x6) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | STL8N80K5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
STL8N80K5 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STL8N80K5 is new and unused, you can buy STL8N80K5 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STL8N80K5.
