| Manufacturer Part Number: | STTH3006PI |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9104 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 600V 30A DOP3I |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STTH3006PI Datasheet |
| Internal Part Number | 898-STTH3006PI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STTH3006 View All Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 600V | |
| Current - Average Rectified (Io) | 30A | |
| Voltage - Forward (Vf) (Max) @ If | 1.85V @ 30A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 70ns | |
| Current - Reverse Leakage @ Vr | 25µA @ 600V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Through Hole | |

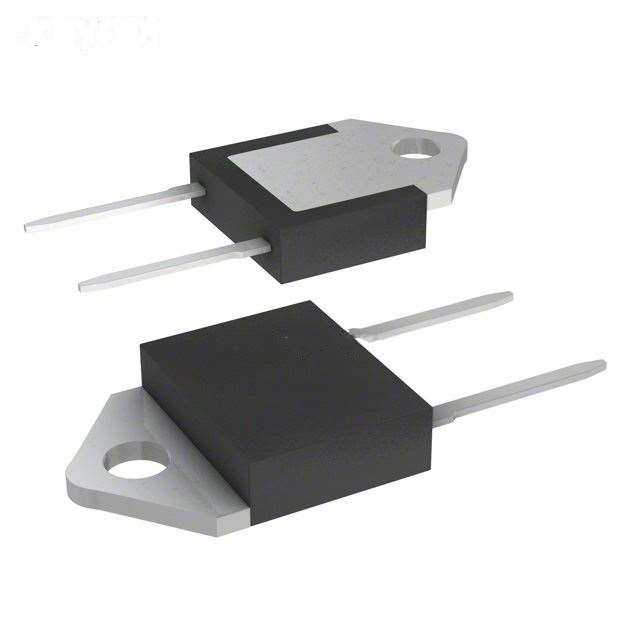

| Package / Case | DOP3I-2 Insulated (Straight Leads) | |
| Supplier Device Package | DOP3I | |
| Operating Temperature - Junction | 175°C (Max) | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STTH3006PI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STTH3006PI is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STTH3006PI is new and unused, you can buy STTH3006PI STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STTH3006PI.
