| Manufacturer Part Number: | TC1044SIJA |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Charge Pump Switching Regulator IC Negative Fixed -Vin 1 Output 20mA 8-CDIP (0.300", 7.62mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TC1044SIJA Datasheet |
| Internal Part Number | 898-TC1044SIJA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Qualification Epoxy Die 09/Sep/2014 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Function | Ratiometric | |
| Output Configuration | Negative | |
| Topology | Charge Pump | |
| Output Type | Fixed | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 1.5V | |
| Voltage - Input (Max) | 12V | |
| Voltage - Output (Min/Fixed) | -Vin | |
| Voltage - Output (Max) | - | |
| Current - Output | 20mA | |
| Frequency - Switching | 10kHz, 45kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -25°C ~ 85°C (TA) | |
| Mounting Type | Through Hole | |

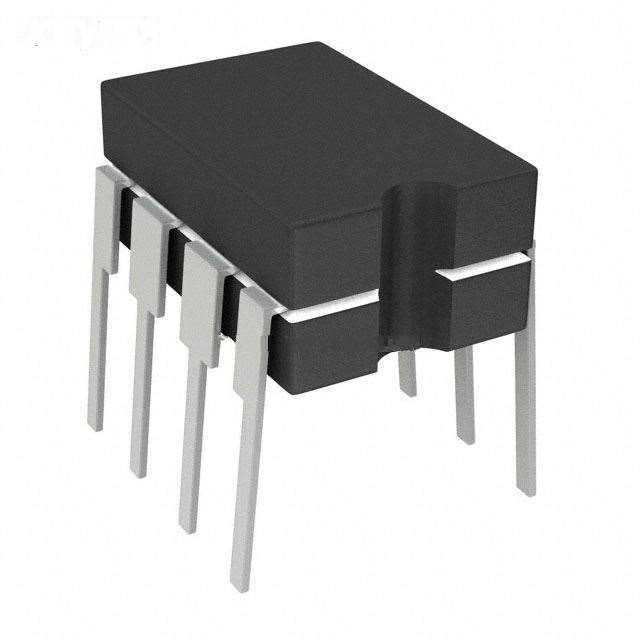

| Package / Case | 8-CDIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-CERDIP | |
| Standard Package | 56 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TC1044SIJA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TC1044SIJA is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of TC1044SIJA is new and unused, you can buy TC1044SIJA Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC1044SIJA.
