Manufacturer Part Number: | TC4422VAT |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | PMIC - Gate Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

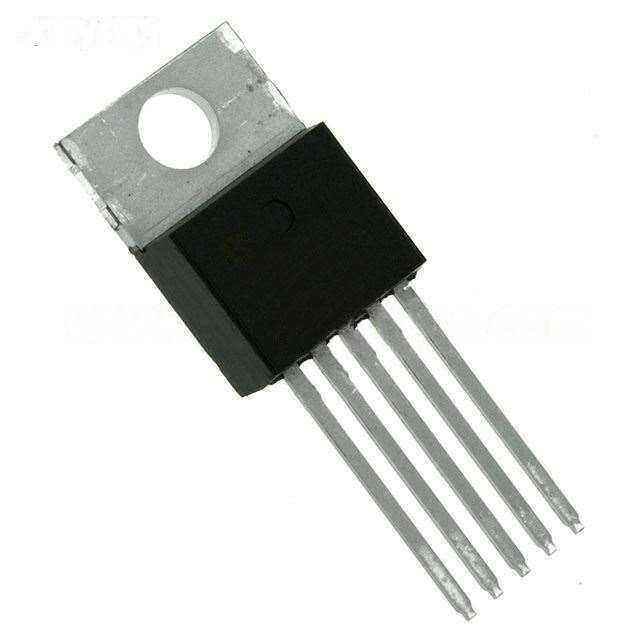

Description: | IC MOSFET DRVR 9A N-INV TO220-5 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TC4422VAT Datasheet |
Internal Part Number | 898-TC4422VAT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | TC4421,2 Devices 03/Sep/2013 | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Gate Drivers | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Tube | |
Part Status | Not For New Designs | |
Driven Configuration | Low-Side | |
Channel Type | Single | |
Number of Drivers | 1 | |
Gate Type | IGBT, N-Channel, P-Channel MOSFET | |
Voltage - Supply | 4.5 V ~ 18 V | |
Logic Voltage - VIL, VIH | 0.8V, 2.4V | |
Current - Peak Output (Source, Sink) | 9A, 9A | |
Input Type | Non-Inverting | |
High Side Voltage - Max (Bootstrap) | - | |
Rise / Fall Time (Typ) | 60ns, 60ns | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | TO-220-5 | |
Supplier Device Package | TO-220-5 | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TC4422VAT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TC4422VAT is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of TC4422VAT is new and unused, you can buy TC4422VAT Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC4422VAT.
