| Manufacturer Part Number: | TIG065E8-TL-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 400V Surface Mount 8-ECH |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TIG065E8-TL-H Datasheet |
| Internal Part Number | 898-TIG065E8-TL-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 400V | |
| Current - Collector (Ic) (Max) | - | |
| Current - Collector Pulsed (Icm) | 150A | |
| Vce(on) (Max) @ Vge, Ic | 7V @ 2.5V, 100A | |
| Power - Max | - | |
| Switching Energy | - | |
| Input Type | Standard | |
| Gate Charge | - | |
| Td (on/off) @ 25°C | - | |
| Test Condition | - | |
| Reverse Recovery Time (trr) | - | |

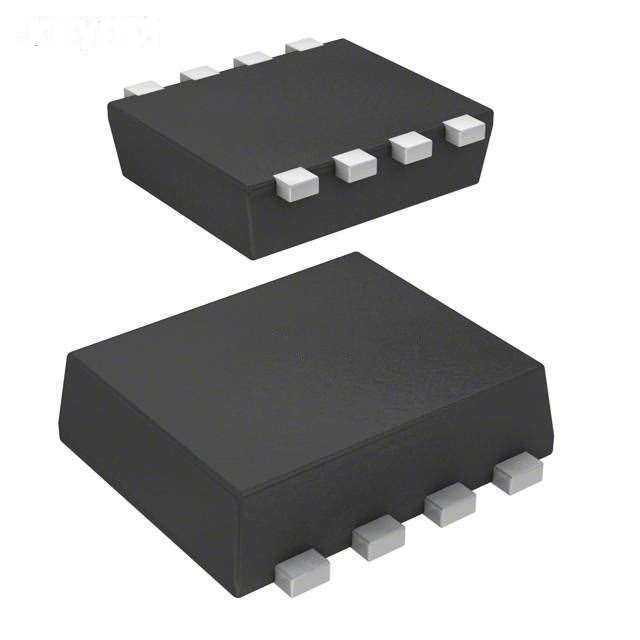

| Package / Case | 8-SMD, Flat Lead | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 8-ECH | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TIG065E8-TL-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TIG065E8-TL-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of TIG065E8-TL-H is new and unused, you can buy TIG065E8-TL-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TIG065E8-TL-H.
