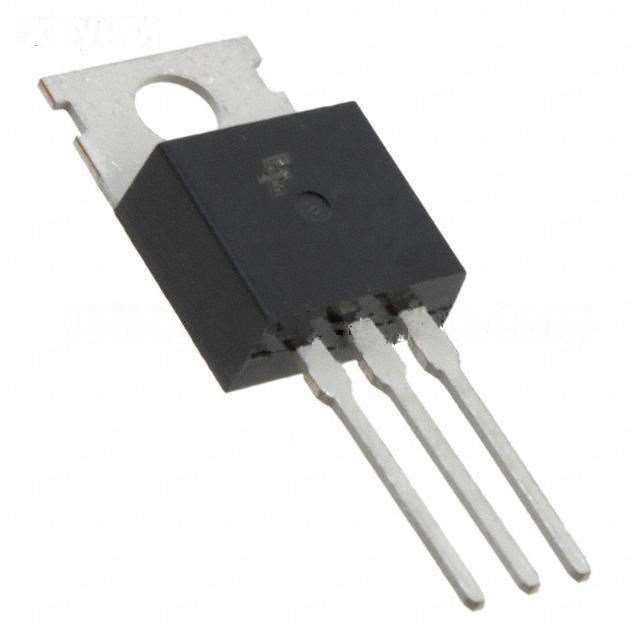

| Manufacturer Part Number: | TIP142T |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 10331 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN DARL 100V 10A TO-3P |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TIP142T Datasheet |
| Internal Part Number | 898-TIP142T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Lead Frame Dimensions 29/Nov/2007 Heatsink Desing Changes 24/Feb/2014 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | NPN Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Transistor Type | NPN - Darlington | |
| Current - Collector (Ic) (Max) | 10A | |
| Voltage - Collector Emitter Breakdown (Max) | 100V | |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A | |
| Current - Collector Cutoff (Max) | 2mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V | |
| Power - Max | 80W | |
| Frequency - Transition | - | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220-3 | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TIP142T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TIP142T is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of TIP142T is new and unused, you can buy TIP142T Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TIP142T.
