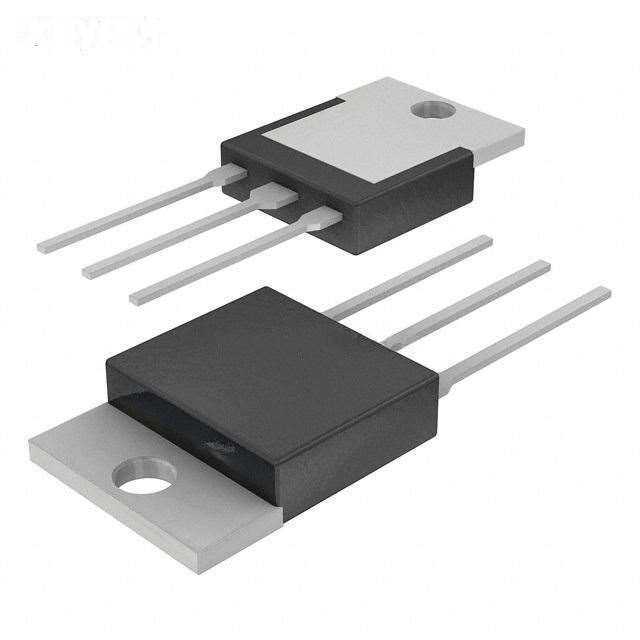

| Manufacturer Part Number: | TIP147TTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9825 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS PNP DARL 100V 10A TO-220 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TIP147TTU Datasheet |
| Internal Part Number | 898-TIP147TTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Lead Frame Dimensions 29/Nov/2007 Heatsink Desing Changes 24/Feb/2014 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | PNP Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Transistor Type | PNP - Darlington | |
| Current - Collector (Ic) (Max) | 10A | |
| Voltage - Collector Emitter Breakdown (Max) | 100V | |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A | |
| Current - Collector Cutoff (Max) | 2mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V | |
| Power - Max | 80W | |
| Frequency - Transition | - | |
| Mounting Type | Through Hole | |
| Package / Case | TO-3P-3, SC-65-3 | |
| Supplier Device Package | TO-3P | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TIP147TTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TIP147TTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of TIP147TTU is new and unused, you can buy TIP147TTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TIP147TTU.
