| Manufacturer Part Number: | TLE8201RAUMA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver DMOS SPI PG-DSO-36 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TLE8201RAUMA1 Datasheet |
| Internal Part Number | 898-TLE8201RAUMA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | TLE8201R Dev EOL 7/Jul/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Infineon Technologies | |
| Series | SPT® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Last Time Buy | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (6), High Side (5) | |
| Interface | SPI | |
| Technology | DMOS | |
| Step Resolution | - | |
| Applications | Automotive | |
| Current - Output | - | |
| Voltage - Supply | 4.75 V ~ 5.5 V | |
| Voltage - Load | 5 V ~ 40 V | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

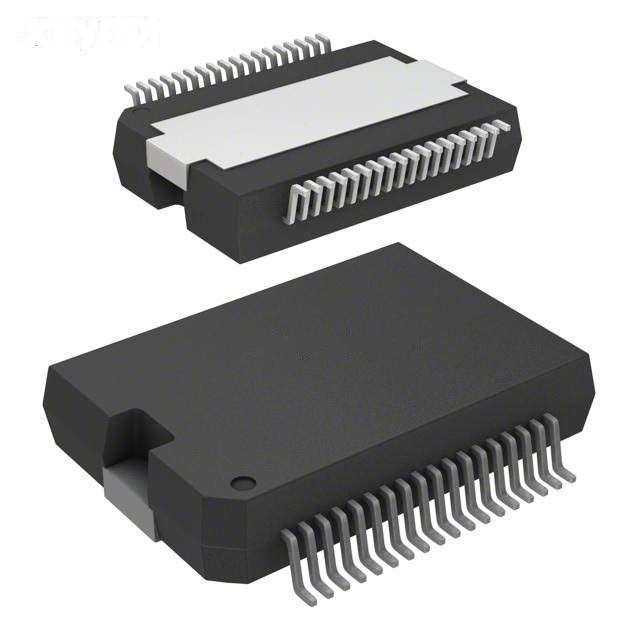

| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | |
| Supplier Device Package | PG-DSO-36 | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TLE8201RAUMA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TLE8201RAUMA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of TLE8201RAUMA1 is new and unused, you can buy TLE8201RAUMA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TLE8201RAUMA1.
