Manufacturer Part Number: | TLV62084DSGR |
---|---|
Manufacturer: | T-I |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 2A 8-WFDFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TLV62084DSGR Datasheet |
Internal Part Number | 898-TLV62084DSGR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | TLV62084 Design with WEBENCH® Power Designer | |
PCN Assembly/Origin | Assembly/Test Site Addition 10/Jul/2015 | |
Manufacturer Product Page | TLV62084DSGR Specifications | |
Online Catalog | Buck (Step-Down) IC | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | T I | |
Series | DCS-Control™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 2.7V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output (Min/Fixed) | 0.5V | |
Voltage - Output (Max) | 4V | |
Current - Output | 2A | |
Frequency - Switching | 2MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

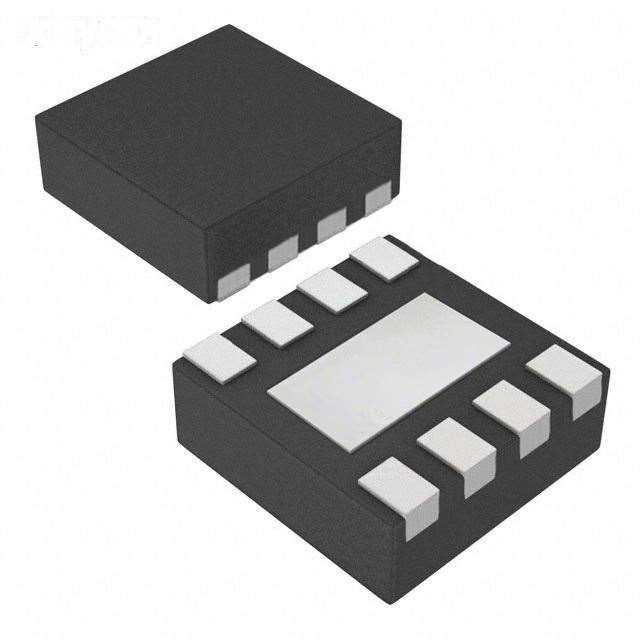

Package / Case | 8-WFDFN Exposed Pad | |
Supplier Device Package | 8-WSON (2x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TLV62084DSGR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TLV62084DSGR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TLV62084DSGR is new and unused, you can buy TLV62084DSGR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TLV62084DSGR.
