| Manufacturer Part Number: | TMS320F28234ZJZS |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9262 Pieces |
| Unit Price: | Quote by Email |
| Description: | C28x C2000™ C28x Delfino™ Microcontroller IC 32-Bit 150MHz 256KB (128K x 16) FLASH 176-BGA (15x15) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TMS320F28234ZJZS Datasheet |
| Internal Part Number | 898-TMS320F28234ZJZS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Microcontrollers: ControlSUITE - Comprehensive software for the entire design process Motor Signal Chain Overview TPS75005 Single IC Power for C2000 MCU Intro to Timers and Clocks Microcontrollers: SYS/BIOS: Introduction to Real-Time Operating Systems and SYS/BIOS | |
| Video File | Let TI and MathWorks help you launch your next motor control design - in cooperation with Digi-Key | |
| Design Resources | Development Tool Selector | |
| PCN Assembly/Origin | Wafer Fab Site 27/Apr/2016 | |
| Manufacturer Product Page | TMS320F28234ZJZS Specifications | |
| Online Catalog | TMS320F28x3x Delfino™ | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | T I | |
| Series | C2000™ C28x Delfino™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | C28x | |
| Core Size | 32-Bit | |
| Speed | 150MHz | |
| Connectivity | CAN, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 88 | |
| Program Memory Size | 256KB (128K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 34K x 16 | |
| Voltage - Supply (Vcc/Vdd) | 1.805 V ~ 1.995 V | |
| Data Converters | A/D 16x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 125°C (TA) | |

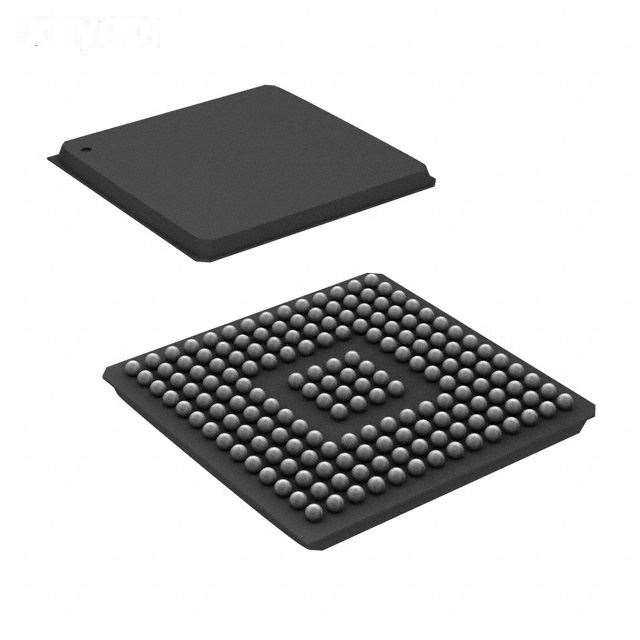

| Package / Case | 176-BGA | |
| Supplier Device Package | 176-BGA (15x15) | |
| Standard Package | 126 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TMS320F28234ZJZS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TMS320F28234ZJZS is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TMS320F28234ZJZS is new and unused, you can buy TMS320F28234ZJZS T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMS320F28234ZJZS.
