Manufacturer Part Number: | TMS320F28334PTPQ |
---|---|
Manufacturer: | T-I |
Product Category: | Embedded - Microcontrollers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | C28x C2000™ C28x Delfino™ Microcontroller IC 32-Bit 150MHz 256KB (128K x 16) FLASH 176-HLQFP (24x24) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TMS320F28334PTPQ Datasheet |
Internal Part Number | 898-TMS320F28334PTPQ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Microcontrollers: ControlSUITE - Comprehensive software for the entire design process TPS75005 Single IC Power for C2000 MCU Intro to Timers and Clocks Microcontrollers: SYS/BIOS: Introduction to Real-Time Operating Systems and SYS/BIOS | |
Video File | Let TI and MathWorks help you launch your next motor control design - in cooperation with Digi-Key | |
Design Resources | Development Tool Selector | |
PCN Assembly/Origin | Qualification Revision 29/Jul/2014 | |
Manufacturer Product Page | TMS320F28334PTPQ Specifications | |
Category | Integrated Circuits (ICs) | |
Family | Embedded - Microcontrollers | |
Manufacturer | T I | |
Series | C2000™ C28x Delfino™ | |
Packaging | Tray | |
Part Status | Active | |
Core Processor | C28x | |
Core Size | 32-Bit | |
Speed | 150MHz | |
Connectivity | CAN, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART | |
Peripherals | DMA, POR, PWM, WDT | |
Number of I/O | 88 | |
Program Memory Size | 256KB (128K x 16) | |
Program Memory Type | FLASH | |
EEPROM Size | - | |
RAM Size | 34K x 16 | |
Voltage - Supply (Vcc/Vdd) | 1.805 V ~ 1.995 V | |
Data Converters | A/D 16x12b | |
Oscillator Type | Internal | |
Operating Temperature | -40°C ~ 125°C (TA) | |

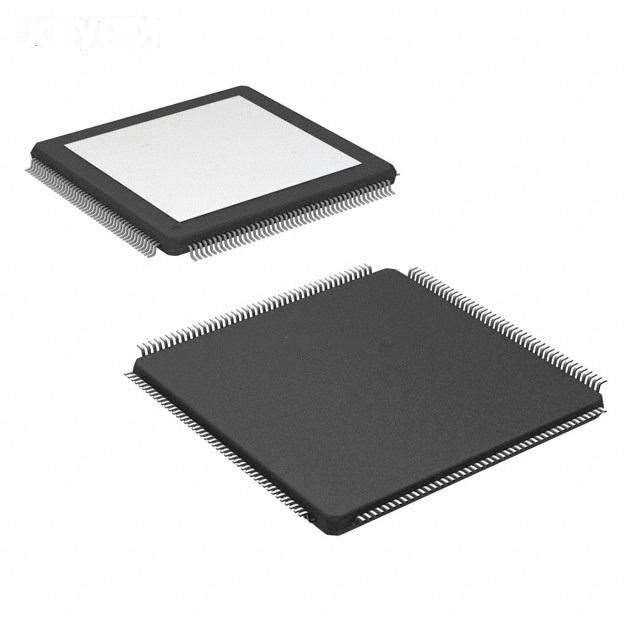

Package / Case | 176-LQFP Exposed Pad | |
Supplier Device Package | 176-HLQFP (24x24) | |
Standard Package | 40 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TMS320F28334PTPQ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TMS320F28334PTPQ is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TMS320F28334PTPQ is new and unused, you can buy TMS320F28334PTPQ T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMS320F28334PTPQ.
