| Manufacturer Part Number: | TOP209GN |
|---|---|
| Manufacturer: | Power Integrations |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback Topology 70kHz 8-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TOP209GN Datasheet |
| Internal Part Number | 898-TOP209GN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Power Integrations | |
| Series | TOPSwitch® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Output Isolation | Non-Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 700V | |
| Topology | Flyback | |
| Voltage - Start Up | - | |
| Voltage - Supply (Vcc/Vdd) | - | |
| Duty Cycle | 67% | |
| Frequency - Switching | 70kHz | |
| Power (Watts) | 2W | |
| Fault Protection | Current Limiting, Over Temperature | |
| Control Features | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |

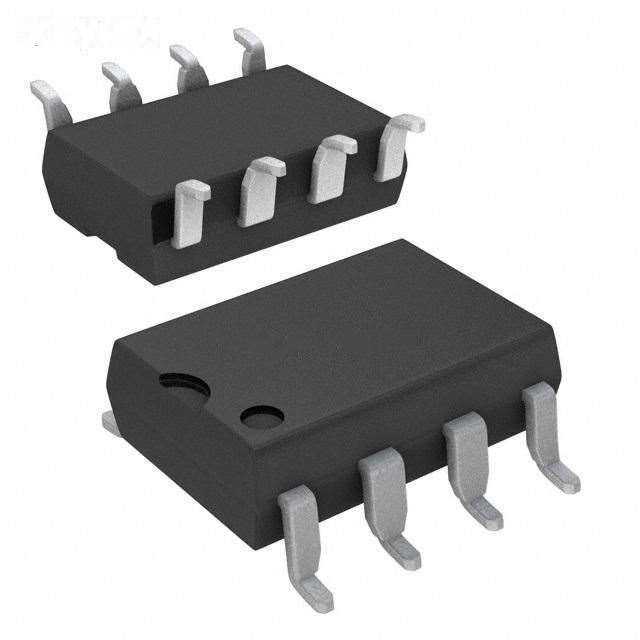

| Package / Case | 8-SMD, Gull Wing | |
| Supplier Device Package | 8-SMD | |
| Mounting Type | Surface Mount | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TOP209GN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TOP209GN is in stock for immediate shipping now. We are the distributor of Power Integrations all series components. The condition of TOP209GN is new and unused, you can buy TOP209GN Power Integrations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TOP209GN.
